GT1213A Marathon 5 hp 1800 RPM 184TC Frame TEFC C-Face (Rigid Base) 230/460V Marathon Electric Motor

GT1213A Marathon 5 hp 1800 RPM 184TC Frame TEFC C-Face (Rigid Base) 230/460V Marathon Electric Motor

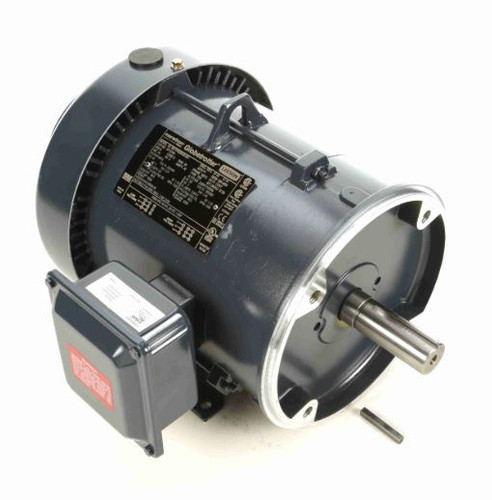

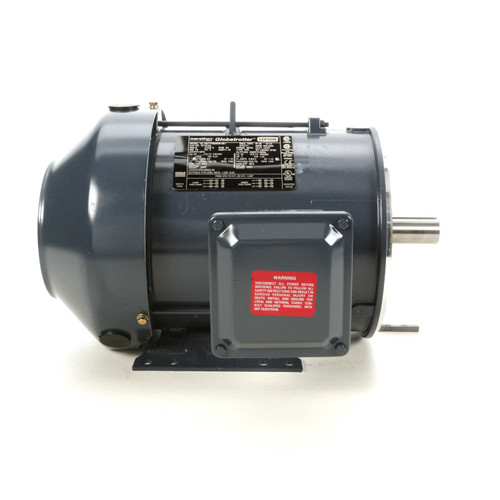

The GT1213A is a general-purpose, three-phase Marathon electric motor designed for various industrial applications requiring a C-face mount. It replaces Leeson model C184T17FK15E (131502.00) and features a rigid base with a keyed shaft for secure mounting of pumps or gear heads.

Key Specifications

• Horsepower: 5 hp
• RPM: 1800
• Voltage: 230/460 V
• Amperage: 13.0/6.5 A
• Enclosure: Totally Enclosed Fan Cooled (TEFC)

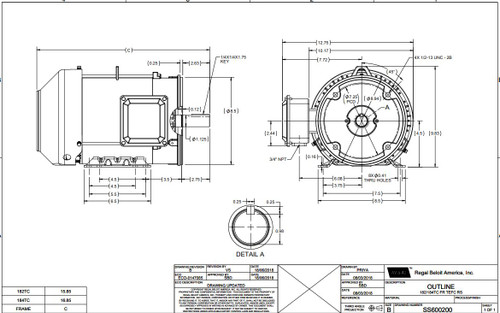

• Frame / Diameter: NEMA 184TC Frame
• Shaft Dimensions: 1 1/8" Diameter x 2 3/4" Length, keyed
• Rotation: Reversible
• Bearings: Ball Bearings

Product Features & Fitment

This motor features a rigid base mount combined with a C-face configuration, allowing for versatile installation options. The shaft includes a keyway and the face has threaded bolt holes to facilitate mounting of pumps or gear heads. A wiring diagram is provided on the motor nameplate for easy electrical connection.

Cross Reference

• Leeson C184T17FK15E, 131502.00

Warranty

1 Year Manufacturer Warranty
