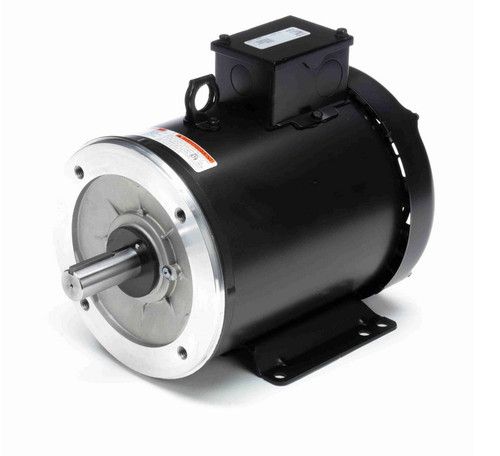

Y1372 Marathon 5 hp 1800 RPM 3-Phase 184TC Frame TEFC (rigid base) 230/460V Marathon Motor

• 5 hp 1800 RPM, 13.0/6.5 amps 230/460 Volts 60 Hz. 3-Phase
• NEMA 184TC frame, C-face, Keyed Shaft 1 1/8" Diameter x 2 3/4"
• Service Factor: 1.0, Overload protection = None
• Rigid Base, Reversible, Ball Bearings, Class H Insulation
• 1 Year Manufacture Warranty

Inverter (Vector) duty three phase electric motor with a C-face mount. 1000:1 constant torque. Shaft has keyway. Motor has 4 threaded bolt holes on face for mounting a pump or gear head to the motor. Bolt holes are 5 7/8" on center measured across the shaft. Wiring diagram on motor name plate. TEFC = Totally Enclosed Fan-Cooled. 184THFW7726
