GT1313A Marathon 5 hp 1800 RPM 3-Phase 184TC Frame TEFC (no base) 230/460V Marathon Motor

GT1313A Marathon 5 hp 1800 RPM 3-Phase 184TC Frame TEFC (no base) 230/460V Marathon Motor

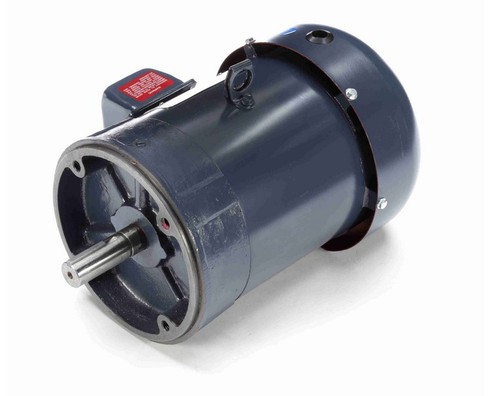

This Marathon 5 horsepower, 1800 RPM, 3-phase motor is designed for general-purpose industrial applications requiring a reliable and durable electric motor with a C-face mount. It is suitable for replacing or upgrading motors in pumps, gear heads, and other machinery.

Key Specifications

• Horsepower: 5 hp
• RPM: 1800
• Voltage: 230/460V
• Amperage: 13.0/6.5 amps
• Enclosure: Totally Enclosed Fan-Cooled (TEFC)
• Frame / Diameter: NEMA 184TC Cast Iron Frame
• Shaft Dimensions: 1 1/8" Diameter x 2 3/4" Length, keyed shaft
• Rotation: Reversible
• Bearings: Ball Bearings

Product Features & Fitment

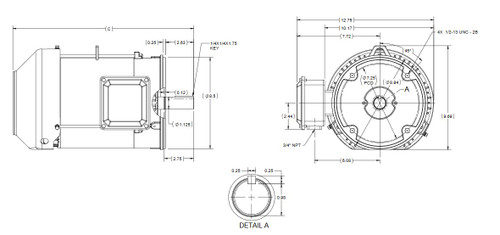

The motor features a C-face mount with four threaded bolt holes spaced 5 7/8" on center across the shaft, allowing easy attachment of pumps or gear heads. The shaft includes a keyway for secure coupling. The motor is designed without a base, providing flexibility for various mounting configurations. Wiring diagrams are provided on the motor nameplate for straightforward electrical connections.

Warranty

1 Year Manufacturer Warranty
