E2012 Marathon 5 hp 3600 RPM 3-Phase 184TC Frame TEFC (base) 230/460V Marathon Motor

E2012 Marathon 5 hp 3600 RPM 3-Phase 184TC Frame TEFC (base) 230/460V Marathon Motor

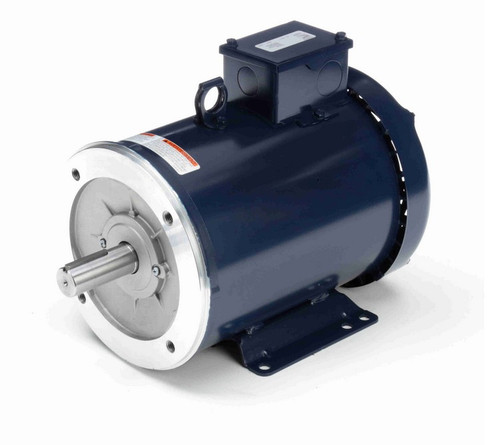

This Marathon 5 horsepower motor is designed for industrial applications requiring a reliable 3-phase power source. It is suitable for replacing or installing in equipment that demands a 3600 RPM motor with a NEMA 184TC frame and a C-face mount.

Key Specifications

• Horsepower: 5 hp
• RPM: 3600
• Voltage: 230/460V
• Amperage: 12.0/6.0 amps
• Enclosure: Totally Enclosed Fan-Cooled (TEFC)
• Frame / Diameter: NEMA 184TC
• Shaft Dimensions: 1 1/8" diameter x 2 3/4" length, keyed shaft
• Rotation: Reversible
• Bearings: Ball Bearings

Product Features & Fitment

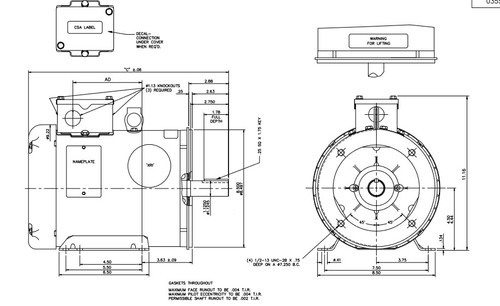

This motor features a rigid base for stable mounting and includes a C-face with four threaded bolt holes spaced 5 7/8" on center across the shaft, allowing for easy attachment of pumps or gear heads. The shaft includes a keyway for secure coupling. Wiring diagrams are provided on the motor nameplate to assist with installation.

Warranty

1 Year Manufacturer Warranty
