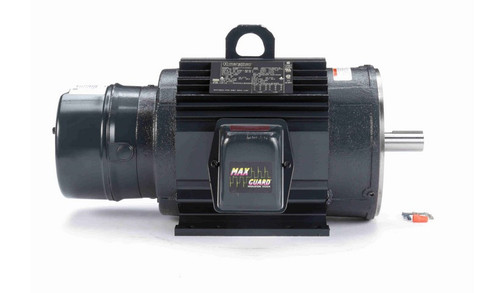

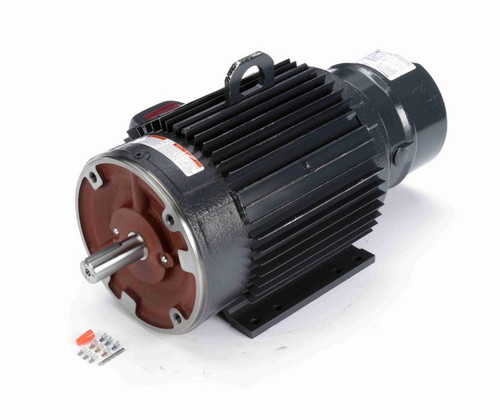

C406 Marathon 5 hp 3 phase 1800 RPM 184TC Frame 230/460V TEFC Marathon Electric Brake Motor

C406 Marathon 5 hp 3 phase 1800 RPM 184TC Frame 230/460V TEFC Marathon Electric Brake Motor

This Marathon 5 hp electric brake motor is designed for industrial applications requiring reliable three-phase power. It serves as a direct replacement for motors with similar specifications, offering consistent performance in various general-purpose settings.

Key Specifications

• Horsepower: 5 hp
• RPM: 1800
• Voltage: 230/460V
• Amperage: 12.4/6.2 amps
• Enclosure: Totally Enclosed Non-Ventilated (TENV)
• Frame / Diameter: NEMA 184TC Frame
• Shaft Dimensions: Keyed Shaft, 1-1/4" Diameter x 2-3/4" Length
• Rotation: Reversible
• Bearings: Ball Bearings

Product Features & Fitment

This motor features a rigid base mount for secure installation and is equipped with Class F insulation for enhanced durability. It does not include overload protection and is suitable for applications requiring a single-phase electric motor. The wiring diagram is conveniently located on the motor nameplate to assist with proper electrical connections.

Warranty

1 Year Manufacturer Warranty
