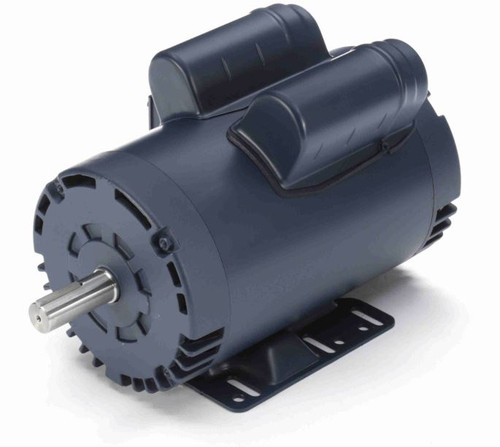

120554.00 Leeson 5 HP 3450 RPM 145T 230V Air Compressor Motor

This Leeson 5 HP air compressor motor is a single-phase replacement designed for belt-driven compressors. It features a 3450 RPM speed and operates at 230V, making it suitable for various industrial air compressor applications.

Key Specifications

• Horsepower: 5 hp
• RPM: 3450
• Voltage: 230V
• Amperage: 20.8 amps
• Enclosure: Open Drip Proof
• Frame / Diameter: NEMA 145T
• Shaft Dimensions: 7/8" diameter x 2 1/4" length with keyway
• Rotation: Electrically Reversible
• Bearings: Ball Bearings

Product Features & Fitment

The motor includes a rigid base mounting with a flat mounting plate conforming to the standard NEMA 145T frame. It features manual overload protection, Class F insulation, and a capacitor start/capacitor run design. The motor nameplate provides a wiring diagram for ease of installation. This motor is not intended for use as an integral part of a compressor but as a replacement for belt-driven units.
