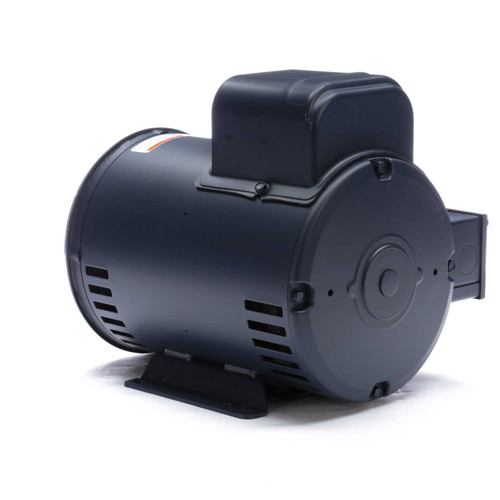

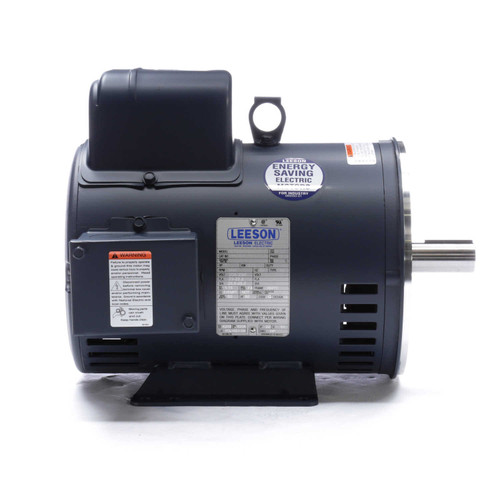

131781.00 Leeson | 5 hp 3600 RPM 184TC Frame ODP C-Face (rigid base) 208-230V

SKU:
131781
Weight:
73.00 LBS
Shipping:
Calculated at Checkout
$0.00

CURRENTLY OUT OF STOCK

LEESON 131781.00 HAS BEEN DISCONTINUED - WITH NO CURRENT REPLACEMENT

  • 5 hp 3600 RPM, 22.2 amps 208-230 Volts 60hz. single Phase Motor
  • NEMA 184TC Frame Keyed Shaft 1 1/8" Diameter x 2 3/4"
  • Service Factor: 1.15 - overload protection = None
  • Rigid Base - Reversible - Round Body Motor - Ball Bearings - Class F Insulation
  • 1 Year Manufacture Warranty

General purpose motor can be used for many applications requiring a single phase Electric motor with a C-face mount. Motor has rigid base with a C-Face mount. Shaft has keyway. Motor has 4 threaded bolt holes on face for mounting a pump or gear head to the motor. Bolt holes are 7 1/4" on center measured across the shaft. Wiring diagram on motor name plate. ODP = Open Drip Proof.

C184K34DK4A, 131781.00
