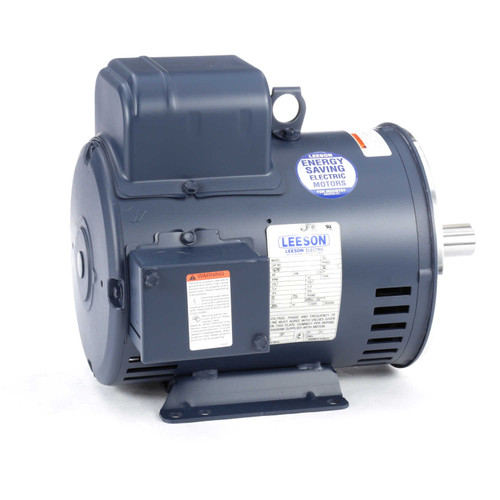

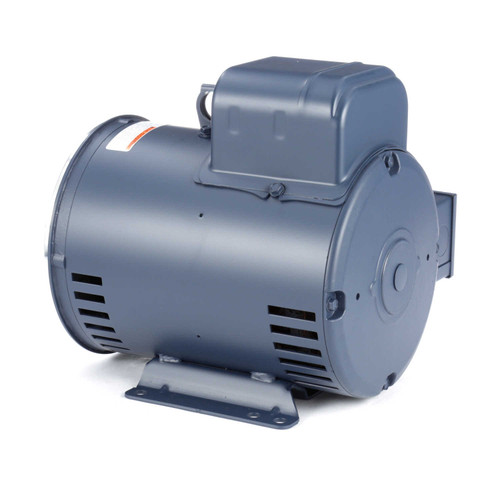

131630.00 Leeson | 5 hp 1800 RPM 184TC Frame ODP C-Face (rigid base) 208-230V

SKU:
131630
Weight:
80.00 LBS
Shipping:
Free Shipping
ON SALE:
DISCOUNTED PRICES AND FREE GROUND SHIPPING
Was: $921.35
Now: $837.59
  • 5 hp 1800 RPM, 21.0 amps 208-230 Volts 60hz. single Phase Motor
  • NEMA 184TC Frame Keyed Shaft 1 1/8" Diameter x 2 3/4"
  • Service Factor: 1.15 - overload protection = Manual
  • No Base - Reversible - Round Body Motor - Ball Bearings - Class F Insulation
  • 1 Year Manufacture Warranty

General purpose motor can be used for many applications requiring a single phase Electric motor with a C-face mount. Motor has rigid base with a C-Face mount. Shaft has keyway. Motor has 4 threaded bolt holes on face for mounting a pump or gear head to the motor. Bolt holes are 7 1/4" on center measured across the shaft. Wiring diagram on motor name plate. ODP = Open Drip Proof.

M184K17DK13A, 131630.00
