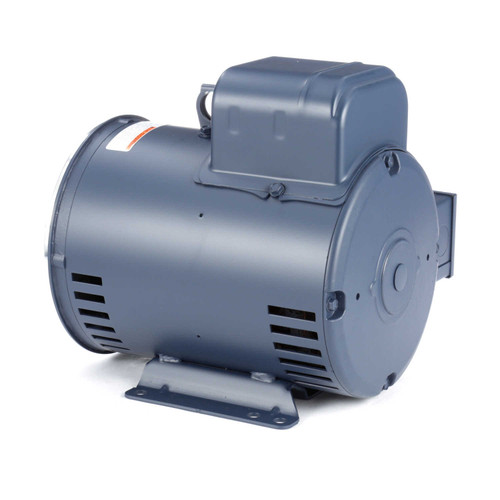

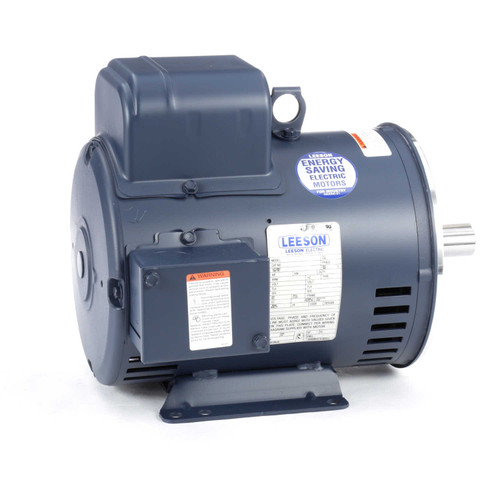

131629.00 Leeson | 3 hp 1800 RPM 184TC Frame ODP C-Face (rigid base) 115/230V

• 3 hp 1800 RPM, 33.8/16.9 amps 115/230 Volts 60hz. single Phase Motor
• NEMA 184TC Frame Keyed Shaft 1 1/8" Diameter x 2 3/4"
• Service Factor: 1.15 - overload protection = Manual
• Rigid Base - Reversible - Round Body Motor - Ball Bearings - Class F Insulation
• 1 Year Manufacture Warranty

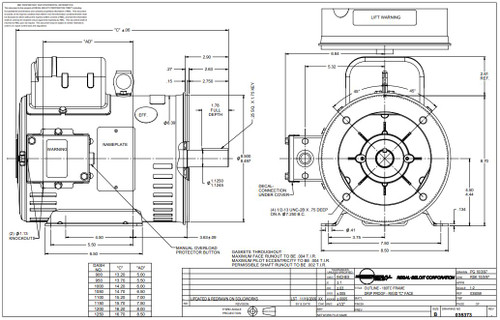

General purpose motor can be used for many applications requiring a single phase Electric motor with a C-face mount. Motor has rigid base with a C-Face mount. Shaft has keyway. Motor has 4 threaded bolt holes on face for mounting a pump or gear head to the motor. Bolt holes are 7 1/4" on center measured across the shaft. Wiring diagram on motor name plate. ODP = Open Drip Proof.

P184C17DK3A, 131629.00
