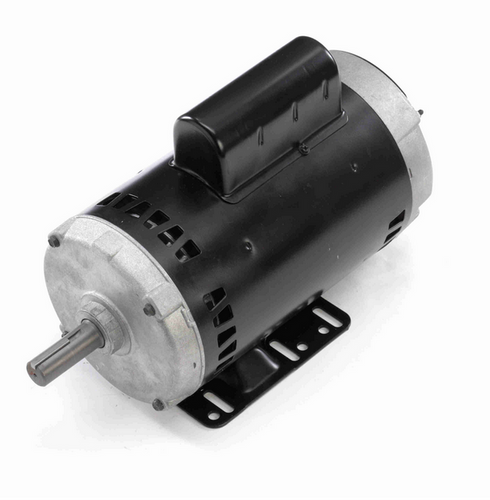

H956 Century 5 hp 3600 RPM 3-Phase 56 Frame ODP (rigid base) 575V Century Motor # H956
H956 Century 5 hp 3600 RPM 3-Phase 56 Frame ODP (rigid base) 575V Century Motor # H956
H956 Century 5 hp 3600 RPM 3-Phase 56 Frame ODP (rigid base) 575V Century Motor # H956
H956 Century 5 hp 3600 RPM 3-Phase 56 Frame ODP (rigid base) 575V Century Motor # H956
H956 Century 5 hp 3600 RPM 3-Phase 56 Frame ODP (rigid base) 575V Century Motor # H956
H956 Century 5 hp 3600 RPM 3-Phase 56 Frame ODP (rigid base) 575V Century Motor # H956
H956 Century 5 hp 3600 RPM 3-Phase 56 Frame ODP (rigid base) 575V Century Motor # H956
H956 Century 5 hp 3600 RPM 3-Phase 56 Frame ODP (rigid base) 575V Century Motor # H956

Century Electric Motor

H956 Century 5 hp 3600 RPM 3-Phase 56 Frame ODP (rigid base) 575V Century Motor # H956

(No reviews) Write a Review
$853.42
$723.24
SKU H956
UPC 7.87E+11
Shipping Free Shipping
Compliance Tab /content/product_tabs/p65warnings.html
ON SALE DISCOUNTED PRICES & SHIPS SAME DAY FOR ORDERS PLACED BEFORE 2 PM
Voltage 575V
Horsepower 5 HP
RPM 3600
Phase Three Phase
Frame 56
Enclosure ODP
Hertz 60 Hz
Amperage 5.4 Amps
Bearings Ball Bearings
Service Factor 1.15
Insulation Class Class B
Mounting Rigid Base
Adding to cart… The item has been added
Description
  • 5 hp 3600 RPM, 5.4 amps 575 Volts 60 Hz. Three Phase
  • NEMA 56 frame, Keyed Shaft 5/8" Diameter x 1 5/8"
  • Service Factor: 1.15, Overload protection = Auto
  • Rigid Base, Reversible, Ball Bearings, Class B Insulation
  • 1 Year Manufacture Warranty

General purpose motors are for use in situations not having special requirements. This is a three phase motor with a rigid base mount. Shaft has keyway. Wiring diagram on motor name plate. ODP = Open Drip Proof. H956

Specifications
Compliance Tab /content/product_tabs/p65warnings.html
ON SALE DISCOUNTED PRICES & SHIPS SAME DAY FOR ORDERS PLACED BEFORE 2 PM
Voltage 575V
Horsepower 5 HP
RPM 3600
Phase Three Phase
Frame 56
Enclosure ODP
Hertz 60 Hz
Amperage 5.4 Amps
Bearings Ball Bearings
Service Factor 1.15
Insulation Class Class B
Mounting Rigid Base
!
