AK71X1 Pulley | 6.95" X 1" Single Groove Fixed Bore "A" Pulley
AK71X1 Pulley | 6.95" X 1" Single Groove Fixed Bore "A" Pulley
AK71X1 Pulley | 6.95" X 1" Single Groove Fixed Bore "A" Pulley
AK71X1 Pulley | 6.95" X 1" Single Groove Fixed Bore "A" Pulley
AK71X1 Pulley | 6.95" X 1" Single Groove Fixed Bore "A" Pulley
AK71X1 Pulley | 6.95" X 1" Single Groove Fixed Bore "A" Pulley

Leeson/AMEC

AK71X1 Pulley | 6.95" X 1" Single Groove Fixed Bore "A" Pulley

(No reviews) Write a Review
$40.25
$34.44
SKU AK71X1
UPC 6.63E+11
Shipping Free Shipping
Pulley Type Fixed Bore
Belt Section A (3L, 4L)
Grooves 1
Bore Size 1"
Pitch Diameter 5" - 8"
Material Cast Iron
Adding to cart… The item has been added
Description

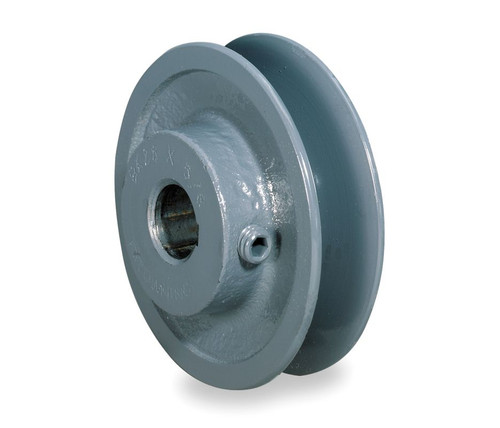

AK71X1 Pulley | 6.95" x 1" Single Groove Fixed Bore "A" Pulley

The AK71X1 is a precision-machined single groove fixed bore pulley designed for use with A, 3L, and 4L (A & AX) V-belts. It serves as a reliable replacement part for industrial motor and HVAC applications requiring a durable and balanced pulley solution.

Key Specifications

  • Frame / Diameter: 6.95" diameter, 1" width
  • Shaft Dimensions: Fixed bore, 1/2" bore option available without keyway

Product Features & Fitment

Manufactured from gray cast iron and statically balanced for smooth operation, this pulley features an epoxy powder coating for enhanced durability. It includes a set screw for secure mounting. Depending on the diameter selected, the pulley may be solid or spoked to reduce weight. Note that the product image is a general representation and actual dimensions may vary.

Warranty

Warranty Information
Specifications
Pulley Type Fixed Bore
Belt Section A (3L, 4L)
Grooves 1
Bore Size 1"
Pitch Diameter 5" - 8"
Material Cast Iron
!
