6174 Nidec 1/2 hp 1800 RPM 100-120/200-240V 56 Frame (Rigid Base) 1-Speed TEFC Cap Start/Run Motor
6174 Nidec 1/2 hp 1800 RPM 100-120/200-240V 56 Frame (Rigid Base) 1-Speed TEFC Cap Start/Run Motor
6174 Nidec 1/2 hp 1800 RPM 100-120/200-240V 56 Frame (Rigid Base) 1-Speed TEFC Cap Start/Run Motor
6174 Nidec 1/2 hp 1800 RPM 100-120/200-240V 56 Frame (Rigid Base) 1-Speed TEFC Cap Start/Run Motor

Nidec

6174 Nidec 1/2 hp 1800 RPM 100-120/200-240V 56 Frame (Rigid Base) 1-Speed TEFC Cap Start/Run Motor

(No reviews) Write a Review
$529.00
$472.31
SKU 6174
Shipping Free Shipping
Compliance Tab /content/product_tabs/p65warnings.html
ON SALE LIMITED TIME DISCOUNT
Voltage 100/120/200/240V
Horsepower 1/2 HP
RPM 1800
Frame 56
Enclosure TEFC
Hertz 60 Hz
Amperage 2.8 Amps
Bearings Ball Bearings
Speeds 1-Speed
Service Factor 1.25
Insulation Class Class B
Mounting Rigid Base
Adding to cart… The item has been added
Description
  • 1/2 hp 1800 RPM, 6.3-5.6/3.1-2.8 amps 100-120/200-240 Volts 60 Hz Capacitor Start/Run Motor
  • NEMA 56 Frame, Rolled Steel with Cast Aluminum End Bells, Keyed Shaft 5/8" Diameter x 1 7/8"
  • Service Factor: 1.25 Overload protection = None
  • Rigid Mount, Ball Bearings, Class B Insulation, Reversible
  • 1 Year Manufacture Warranty

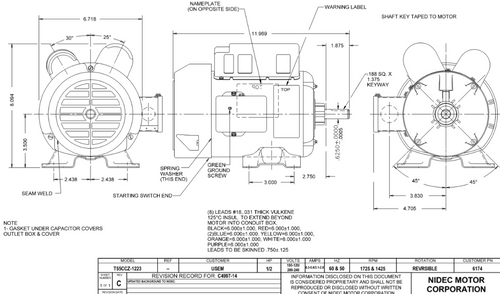

For used on air compressors, pumps, and conveyor requiring high starting torque. Wiring diagram on motor name plate. TEFC = Totally Enclosed Fan Cooled. T055CCZ1223025B

Specifications
Compliance Tab /content/product_tabs/p65warnings.html
ON SALE LIMITED TIME DISCOUNT
Voltage 100/120/200/240V
Horsepower 1/2 HP
RPM 1800
Frame 56
Enclosure TEFC
Hertz 60 Hz
Amperage 2.8 Amps
Bearings Ball Bearings
Speeds 1-Speed
Service Factor 1.25
Insulation Class Class B
Mounting Rigid Base
!
