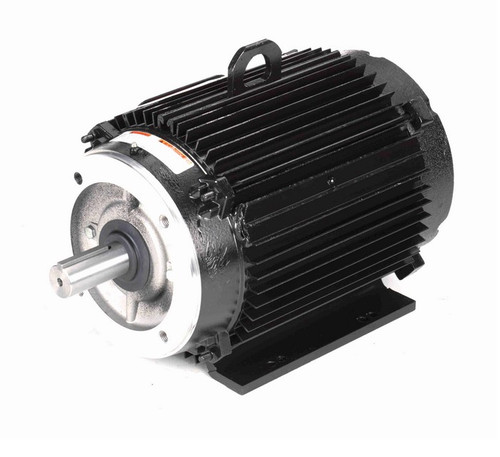

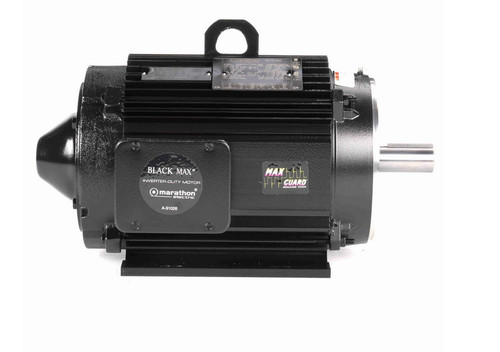

Y545 Marathon 7 1/2 hp 1800 RPM 3-Phase 213TC Frame TENV (rigid base) 230/460V Marathon Motor

Y545 Marathon 7 1/2 hp 1800 RPM 3-Phase 213TC Frame TENV (rigid base) 230/460V Marathon Motor

This Marathon electric motor delivers 7.5 horsepower at 1800 RPM, designed for industrial applications requiring reliable three-phase power. It is suitable for replacing or upgrading motors in HVAC systems, pumps, and other machinery needing a rigid base mount.

Key Specifications

• Horsepower: 7 1/2 hp
• RPM: 1800
• Voltage: 230/460V
• Amperage: 21.0/10.5 amps
• Enclosure: Totally Enclosed Non-Ventilated (TENV)

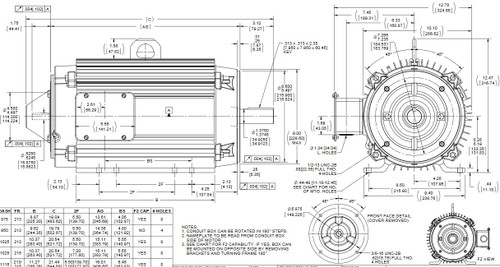

• Frame / Diameter: NEMA 213TC Aluminum frame
• Shaft Dimensions: 1 3/8" diameter x 3 3/8" length, keyed shaft
• Rotation: Reversible
• Bearings: Ball Bearings

Product Features & Fitment

This inverter (vector) duty motor features a C-face mount with four threaded bolt holes spaced 5 7/8" on center across the shaft, allowing easy attachment of pumps or gear heads. The motor is encoder ready and includes a wiring diagram on the nameplate for straightforward installation. Its rigid base design ensures stable mounting in a variety of industrial setups.

Warranty

1 Year Manufacturer Warranty
