141266.00 Leeson | 7.5 hp 1800 RPM 213TC Frame TEFC (no base) C-Face 230/460V Wash Down Duty

141266.00 Leeson | 7.5 hp 1800 RPM 213TC Frame TEFC (no base) C-Face 230/460V Wash Down Duty

This Leeson 7.5 hp, 1800 RPM three-phase motor is designed for wash down duty applications and replaces model G140467.00. It features a durable construction ideal for environments requiring moisture resistance and reliable performance.

Key Specifications

• Horsepower: 7.5 hp
• RPM: 1800
• Voltage: 230/460 V
• Amperage: 19.6/9.8 A
• Enclosure: Totally Enclosed Fan Cooled (TEFC)
• Frame / Diameter: NEMA 213TC
• Shaft Dimensions: Keyed shaft, 1 3/8" diameter x 3 3/8" length

Product Features & Fitment

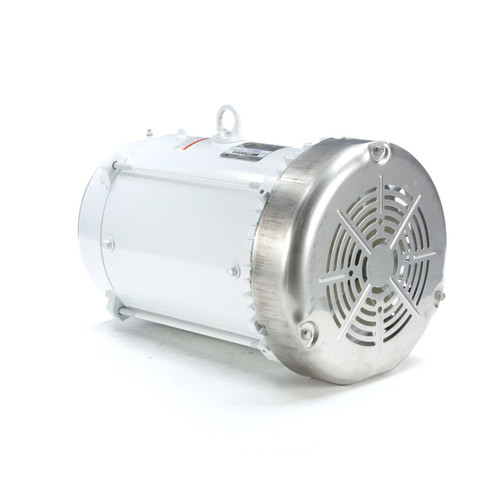

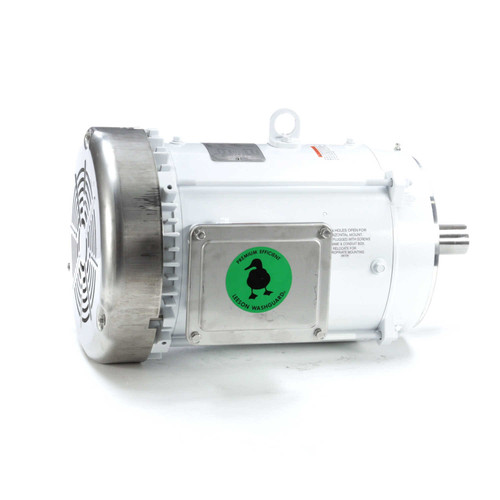

This Leeson Washguard motor features a round body design without a base and a C-face mounting configuration, facilitating direct coupling to compatible equipment. It includes stainless steel components such as the shaft, conduit box cover, nameplate, and fan guard, along with special gaskets, slingers, seals, and four endshield drains to enhance moisture resistance. The motor’s interior components utilize the IRIS insulation system and are coated with durable Rust-Oleum white epoxy paint for added protection in wash down environments.

Cross Reference

• G140467.00

Warranty

1 Year Manufacturer Warranty
