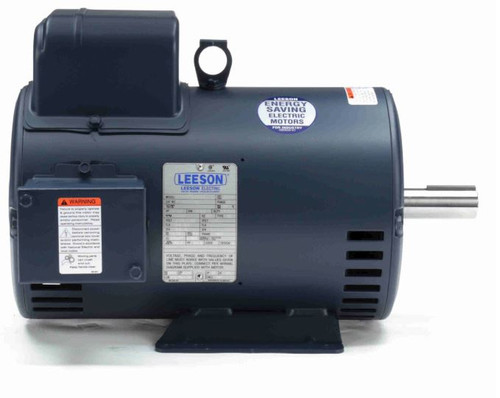

132044.00 Leeson | 7.5 hp 3600 RPM 184T Frame 208-230V Open Drip

132044.00 Leeson | 7.5 hp 3600 RPM 184T Frame 208-230V Open Drip

This Leeson 7.5 hp single-phase electric motor operates at 3600 RPM and is designed for general-purpose applications. It replaces Marathon models I108, I108A, and 184TBDW7001, making it suitable for a wide range of industrial uses requiring reliable performance.

Key Specifications

• Horsepower: 7.5 hp
• RPM: 3600
• Voltage: 208-230V, 60 Hz
• Amperage: 31.0 amps
• Enclosure: Open Drip Proof (ODP)
• Frame / Diameter: NEMA 184T
• Shaft Dimensions: Keyed shaft, 1 1/8" diameter x 2 3/4" length
• Rotation: Reversible
• Bearings: Ball Bearings

Product Features & Fitment

This motor features a rigid base mount for stable installation and includes a keyed shaft for secure coupling. It is equipped with Class F insulation and an automatic thermostat for overload protection. The wiring diagram is conveniently located on the motor nameplate to assist with proper electrical connections.

Cross Reference

• Marathon I108, I108A, 184TBDW7001

Warranty

• DATA SHEET
