D7P1G Nidec | 7.5 hp 3600 RPM 184T Frame 575V ODP Motor Electric Motor Nidec
D7P1G Nidec | 7.5 hp 3600 RPM 184T Frame 575V ODP Motor Electric Motor Nidec
D7P1G Nidec | 7.5 hp 3600 RPM 184T Frame 575V ODP Motor Electric Motor Nidec
D7P1G Nidec | 7.5 hp 3600 RPM 184T Frame 575V ODP Motor Electric Motor Nidec

Nidec

D7P1G Nidec | 7.5 hp 3600 RPM 184T Frame 575V ODP Motor Electric Motor Nidec

(No reviews) Write a Review
$824.55
$736.23
SKU D7P1G
UPC 6.63E+11
Availability Subject to availability
Shipping Calculated at Checkout
Compliance Tab /content/product_tabs/p65warnings.html
ON SALE LIMITED TIME DISCOUNT
Voltage 575V
Horsepower 7-1/2 HP
RPM 3600
Phase Three Phase
Frame 184T
Enclosure ODP
Amperage 7.3 Amps
Bearings Ball Bearings
Service Factor 1.15
Insulation Class Class F
Mounting Rigid Base
Duty Continuous Duty
Adding to cart… The item has been added
Description
  • 7.5 hp 3600 RPM, 7.3 amps 575 Volts Three Phase

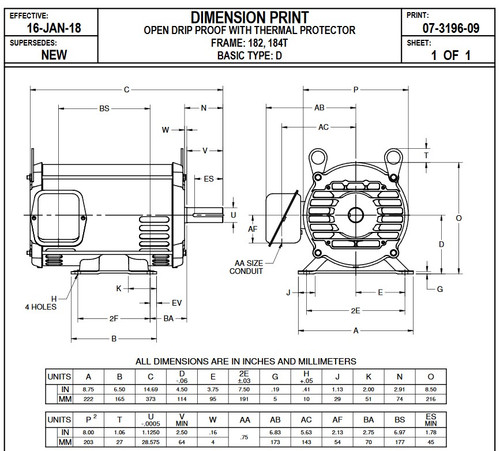

  • NEMA 184T frame Keyed Shaft 1-1/8" x 2 3/4"
  • ODP; Service Factor: 1.15, Overload protection = None
  • Reversible, Rigid Base Mount, Ball Bearings, Class F Insulation
  • 1 Year Manufacture Warranty

General purpose motor can be used for many applications requiring a three phase electric motor. Continuous Duty.  Premium efficient. 40C Ambient Temp. Wiring diagram on motor name plate. ODP = Open Drip Proof

Model FH95, Dayton 6YW84

Specifications
Compliance Tab /content/product_tabs/p65warnings.html
ON SALE LIMITED TIME DISCOUNT
Voltage 575V
Horsepower 7-1/2 HP
RPM 3600
Phase Three Phase
Frame 184T
Enclosure ODP
Amperage 7.3 Amps
Bearings Ball Bearings
Service Factor 1.15
Insulation Class Class F
Mounting Rigid Base
Duty Continuous Duty
!
