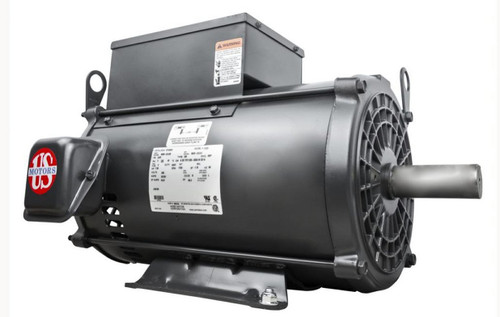

D7C1K21 Nidec | 7.5 hp 3600 RPM 213T Frame 230V Open Drip Nidec Electric Motor

D7C1K21 Nidec | 7.5 hp 3600 RPM 213T Frame 230V Open Drip Nidec Electric Motor

This Nidec 7.5 hp electric motor is designed for general-purpose applications requiring a reliable single-phase motor. It is a direct replacement for models such as AF90 and Dayton 6K634, suitable for various industrial and HVAC uses.

Key Specifications

• Horsepower: 7.5 hp
• RPM: 3600
• Voltage: 230V
• Amperage: 30.3 amps
• Enclosure: Open Drip Proof (ODP)
• Frame / Diameter: NEMA 213T Frame
• Shaft Dimensions: Keyed shaft, 1 3/8" diameter x 3 3/8" length
• Rotation: Reversible
• Bearings: Ball Bearings

Product Features & Fitment

This capacitor start motor features a rigid base mount for secure installation and includes Class F insulation for enhanced durability. The wiring diagram is conveniently located on the motor nameplate to assist with proper electrical connections. It does not include overload protection and is designed for versatile use across multiple applications.

Warranty

1 Year Manufacturer Warranty
