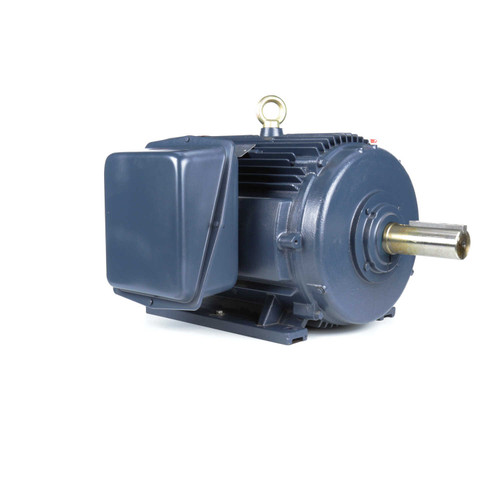

GT1042A Marathon 75 hp 3600 RPM 365TS Frame 230/460V TEFC Marathon Electric Motor

SKU:
GT1042A
Weight:
950.00 LBS
Shipping:
Calculated at Checkout
STATUS:
DISCONTINUED
$0.00

CURRENTLY OUT OF STOCK

Motor Discontinued

  • 75 hp 3600 RPM, 168.0/84.0 amps 230/460 Volts 60hz. Three Phase Motor
  • NEMA 365TS Frame Keyed Shaft 1 7/8 " Diameter x 3 3/4"
  • Service Factor: 1.15 - overload protection = None
  • Reversible - Rigid Base Mount - Ball Bearings - Class F Insulation
  • 1 Year Manufacture Warranty

General purpose motor can be used for many applications requiring a three phase Electric motor. Motor has a rigid base mount with a keyed shaft. Wiring diagram on motor name plate. TEFC = Totally Enclosed Fan cooled.

365TSTFCD6001 Replaces Leeson 170045.60, Dayton 44Z376
