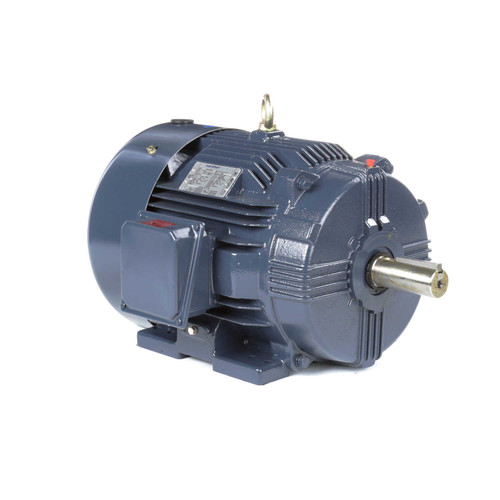

GT1030A Marathon 30 hp 3600 RPM 286TS Frame 230/460V TEFC Marathon Electric Motor

GT1030A Marathon 30 hp 3600 RPM 286TS Frame 230/460V TEFC Marathon Electric Motor

The GT1030A is a general-purpose, three-phase electric motor designed for industrial applications requiring reliable power and durability. It replaces Leeson models 170037.60, 199024.00, B199024.00, and Dayton 44Z352, making it a versatile choice for equipment upgrades and replacements.

Key Specifications

• Horsepower: 30 hp
• RPM: 3550 RPM
• Voltage: 230/460 V
• Amperage: 71.0/35.5 A
• Enclosure: Totally Enclosed Fan Cooled (TEFC)
• Frame / Diameter: NEMA 286TS
• Shaft Dimensions: 1 5/8" Diameter x 3 1/4" Length, keyed shaft
• Rotation: Reversible
• Bearings: Ball Bearings

Product Features & Fitment

This motor features a rigid base mount for stable installation and includes a wiring diagram on the motor nameplate for easy setup. It is built with Class F insulation and a service factor of 1.15, ensuring reliable operation under varying loads. The motor’s TEFC design provides protection against environmental contaminants, making it suitable for a wide range of industrial environments.

Cross Reference

• Leeson 170037.60, 199024.00, B199024.00; Dayton 44Z352

Warranty

1 Year Manufacturer Warranty
