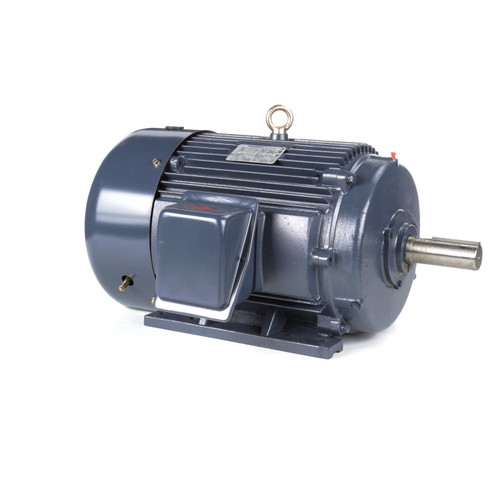

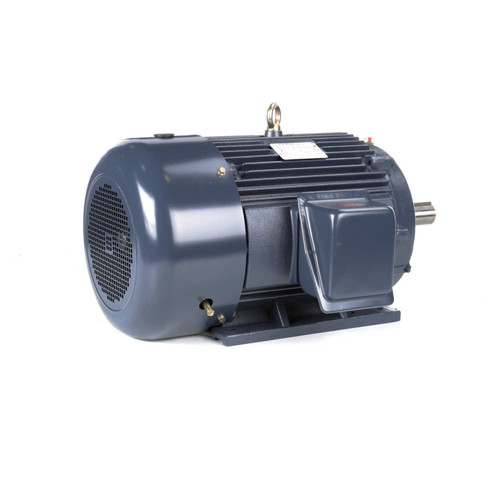

GT1036A Marathon 50 hp 3600 RPM 326TS Frame 230/460V TEFC Marathon Electric Motor
(No reviews)
Write a Review
Write a Review
Marathon
GT1036A Marathon 50 hp 3600 RPM 326TS Frame 230/460V TEFC Marathon Electric Motor
$3,362.95
$2,807.15
SKU
GT1036A
UPC
7.23E+11
Shipping
Calculated at Checkout
Compliance Tab
/content/product_tabs/p65warnings.html
ON SALE
LIMITED TIME DISCOUNT
Voltage
230/460V
Horsepower
50 HP
RPM
3600
Phase
Three Phase
Frame
326TS
Enclosure
TEFC
Hertz
60 Hz
Amperage
113.0/56.5 Amps
Bearings
Ball Bearings
Service Factor
1.15
Insulation Class
Class F
Mounting
Rigid Base
GT1036A Marathon 50 hp 3600 RPM 326TS Frame 230/460V TEFC Marathon Electric Motor
The GT1036A is a general-purpose, three-phase electric motor designed for industrial applications requiring reliable performance. It replaces Leeson 170041.60 and Dayton 44Z364 models, featuring a rugged construction suitable for various machinery.
Key Specifications
- Horsepower: 50 hp
- RPM: 3600
- Voltage: 230/460 V
- Amperage: 113.0/56.5 A
- Enclosure: Totally Enclosed Fan Cooled (TEFC)
- Frame / Diameter: NEMA 326TS
- Shaft Dimensions: Keyed shaft, 1 7/8" diameter x 3 3/4" length
- Rotation: Reversible
- Bearings: Ball Bearings
Product Features & Fitment
This motor features a rigid base mount for secure installation and includes a keyed shaft for reliable power transmission. It is equipped with Class F insulation and a service factor of 1.15, though it does not include overload protection. Wiring diagrams are conveniently located on the motor nameplate for easy setup.
Cross Reference
- Leeson 170041.60, Dayton 44Z364
Warranty
1 Year Manufacturer Warranty
1 Year Manufacturer Warranty
| Compliance Tab | /content/product_tabs/p65warnings.html |
|---|---|
| ON SALE | LIMITED TIME DISCOUNT |
| Voltage | 230/460V |
| Horsepower | 50 HP |
| RPM | 3600 |
| Phase | Three Phase |
| Frame | 326TS |
| Enclosure | TEFC |
| Hertz | 60 Hz |
| Amperage | 113.0/56.5 Amps |
| Bearings | Ball Bearings |
| Service Factor | 1.15 |
| Insulation Class | Class F |
| Mounting | Rigid Base |
- Leeson 170041.60, Dayton 44Z364
Related Products
sale
Add to Cart
The item has been added

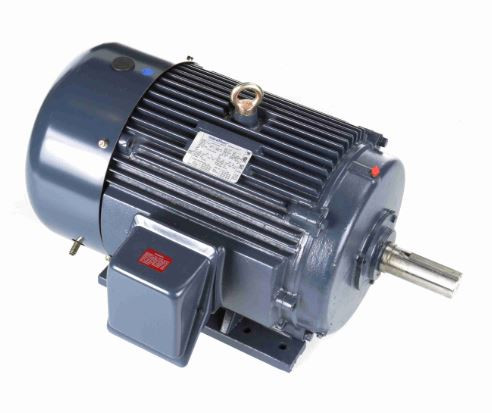

GT1037A Marathon 50 hp 1800 RPM 326T Frame 230/460V TEFC Marathon Electric Motor
