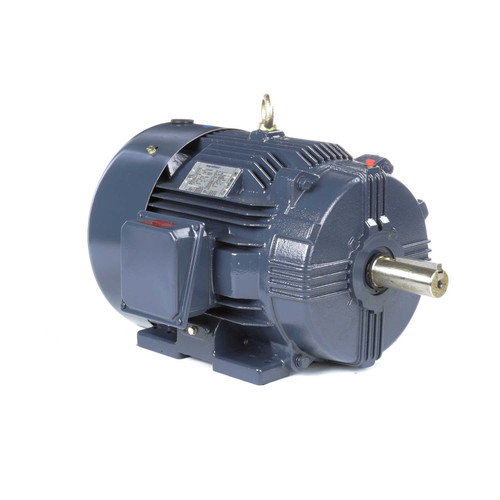

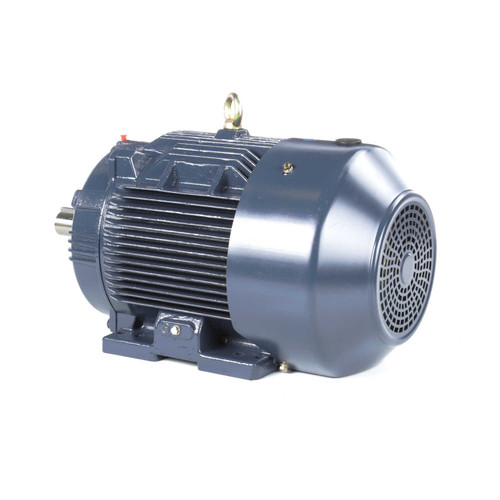

GT1032A Marathon 30 hp 1200 RPM 326T Frame 230/460V TEFC Marathon Electric Motor

GT1032A Marathon 30 hp 1200 RPM 326T Frame 230/460V TEFC Marathon Electric Motor

SKU:
MGT1032
Availability:
LIMITED STOCK
Weight:
1,136.00 LBS
Width:
48.00 (in)
Height:
40.00 (in)
Depth:
30.00 (in)
Shipping:
Calculated at Checkout
STATUS:
DISCONTINUED
Voltage:
230/460V
Horsepower:
30 HP
RPM:
1200
Phase:
Three Phase
Frame:
326T Frame
Enclosure:
TEFC
Hertz:
60 Hz
Amperage:
76.0/38.8 Amps
Bearings:
Ball Bearings
Service Factor:
1.15
Insulation Class:
Class F
Mounting:
Rigid Base
Was: $3,500.00
Now: $3,299.95
Adding to cart… The item has been added

LIMITED STOCK REMAINING

  • 30 hp 1200 RPM, 76.0/38.8 amps 208-230/460 Volts 60hz. Three Phase Motor
  • NEMA 326T Frame Keyed Shaft 2 1/8 " Diameter x 5 1/4"
  • Service Factor: 1.15 - overload protection = None
  • Reversible - Rigid Base Mount - Ball Bearings - Class F Insulation
  • 1 Year Manufacture Warranty

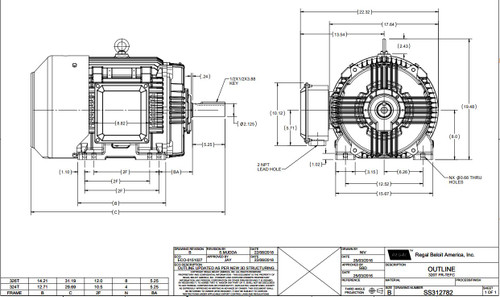

General purpose motor can be used for many applications requiring a three phase Electric motor. Motor has a rigid base mount with a keyed shaft. Wiring diagram on motor name plate. TEFC = Totally Enclosed Fan cooled.

326TTFCD6076 Replaces Leeson 170005.60, 199026.00, B199026.00; Dayton 44Z368

!
