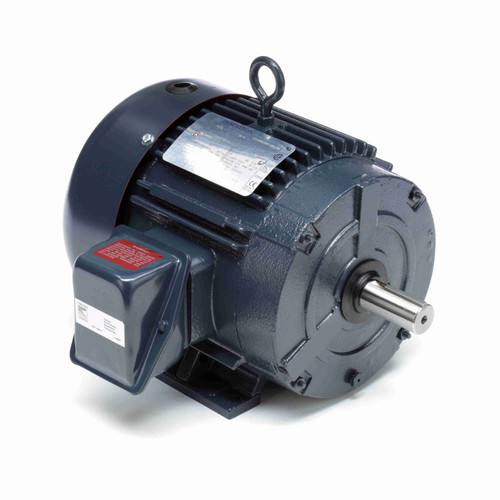

GT1005A Marathon 1.5 hp 1200 RPM 182T Frame 230/460V TEFC Marathon Electric Motor

GT1005A Marathon 1.5 hp 1200 RPM 182T Frame 230/460V TEFC Marathon Electric Motor

The GT1005A is a durable, general-purpose three-phase electric motor designed for a wide range of industrial applications. It replaces models such as 199001.00, B199001.00, C18211FB1, 182TTFCD6076, GT1005, and Dayton 44Z314, offering reliable performance with a dual-branded Leeson/Marathon design.

Key Specifications

• Horsepower: 1.5 hp
• RPM: 1200
• Voltage: 230/460 V
• Amperage: 4.6/2.3 A
• Enclosure: Totally Enclosed Fan Cooled (TEFC)
• Frame / Diameter: NEMA 182T
• Shaft Dimensions: 1 5/8" Diameter x 2-3/4" Length
• Rotation: Reversible
• Bearings: Ball Bearings

Product Features & Fitment

This motor features a rigid base mount and a keyed shaft for secure installation. It includes a wiring diagram on the nameplate for straightforward electrical connections. The motor is built with Class F insulation and a service factor of 1.15, though it does not include overload protection.

Cross Reference

• Models: 199001.00, B199001.00, C18211FB1, 182TTFCD6076, GT1005; Dayton 44Z314

Warranty

• DATA SHEET
