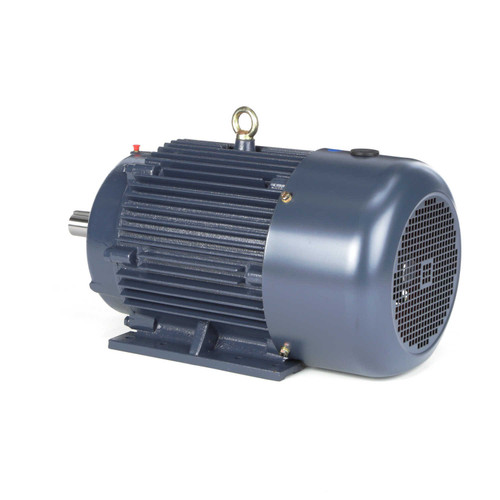

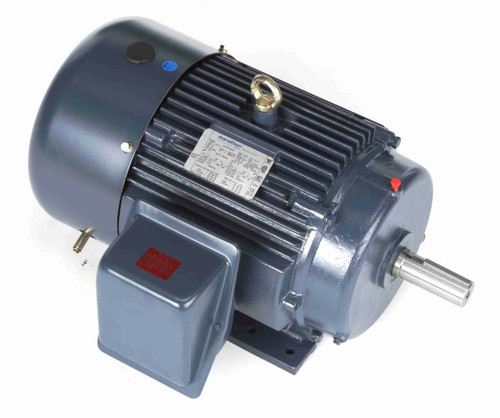

GT1017A Marathon 7.5 hp 1200 RPM 254T Frame 230/460V TEFC Marathon Electric Motor

SKU:: GT1017A
UPC:: 7.23E+11
Weight:: 290.00 LBS
Width:: 35.00 (in)
Height:: 28.00 (in)
Depth:: 20.00 (in)
Shipping:: Calculated at Checkout
ON SALE:: LIMITED TIME DISCOUNT
Voltage:: 230/460V
Horsepower:: 7-1/2 HP
RPM:: 1200
Phase:: Three Phase
Frame:: 254T
Enclosure:: TEFC
Hertz:: 60 Hz
Amperage:: 19.8/9.9 Amps
Bearings:: Ball Bearings
Service Factor:: 1.15
Insulation Class:: Class F
Mounting:: Rigid Base

Current Stock:

Was: $1,748.00

Now: $1,396.10

Quantity:

Adding to cart… The item has been added

Description
Literature
Compliance & Restrictions

7.5 hp 1200 RPM, 19.8/9.9 amps 230/460 Volts 60hz. Three Phase Motor
NEMA 254T Frame Keyed Shaft 1 5/8" Diameter x 4"
Service Factor: 1.15 - overload protection = None
Reversible - Rigid Base Mount - Ball Bearings - Class F Insulation
1 Year Manufacture Warranty

General purpose motor can be used for many applications requiring a three phase Electric motor. Motor has a rigid base mount with a keyed shaft. Wiring diagram on motor name plate. TEFC = Totally Enclosed Fan cooled.

Dual Branded Leeson/Marathon Electric Motor
Replaces Models: 199011.00, B199011.00, C254T11FB1, D254T11FB7, 254TTFCD6076
