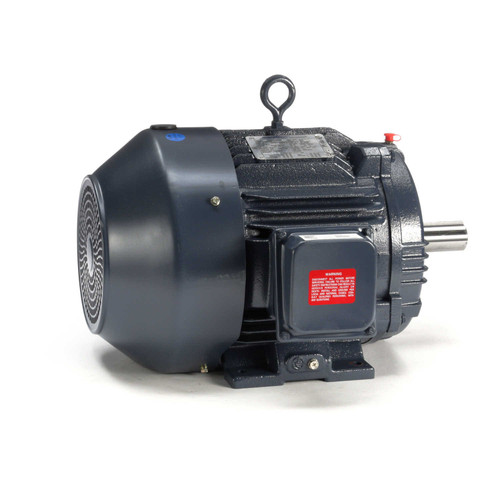

GT1016A Marathon 7.5 hp 1800 RPM 213T Frame 230/460V TEFC Marathon Electric Motor
GT1016A Marathon 7.5 hp 1800 RPM 213T Frame 230/460V TEFC Marathon Electric Motor
GT1016A Marathon 7.5 hp 1800 RPM 213T Frame 230/460V TEFC Marathon Electric Motor
GT1016A Marathon 7.5 hp 1800 RPM 213T Frame 230/460V TEFC Marathon Electric Motor
GT1016A Marathon 7.5 hp 1800 RPM 213T Frame 230/460V TEFC Marathon Electric Motor
GT1016A Marathon 7.5 hp 1800 RPM 213T Frame 230/460V TEFC Marathon Electric Motor
GT1016A Marathon 7.5 hp 1800 RPM 213T Frame 230/460V TEFC Marathon Electric Motor
GT1016A Marathon 7.5 hp 1800 RPM 213T Frame 230/460V TEFC Marathon Electric Motor
GT1016A Marathon 7.5 hp 1800 RPM 213T Frame 230/460V TEFC Marathon Electric Motor
GT1016A Marathon 7.5 hp 1800 RPM 213T Frame 230/460V TEFC Marathon Electric Motor

Marathon

GT1016A Marathon 7.5 hp 1800 RPM 213T Frame 230/460V TEFC Marathon Electric Motor

(No reviews) Write a Review
$996.94
$788.90
SKU MGT1016
Shipping Calculated at Checkout
Compliance Tab /content/product_tabs/p65warnings.html
ON SALE LIMITED TIME DISCOUNT
Voltage 230/460V
Horsepower 7-1/2 HP
RPM 1800
Phase Three Phase
Frame 213T
Enclosure TEFC
Hertz 60 Hz
Amperage 19.0/9.5 Amps
Bearings Ball Bearings
Service Factor 1.15
Insulation Class Class F
Mounting Rigid Base
Adding to cart… The item has been added
Description
  • 7.5 hp 1800 RPM, 19.0/9.5 amps 230/460 Volts 60hz. Three Phase Motor

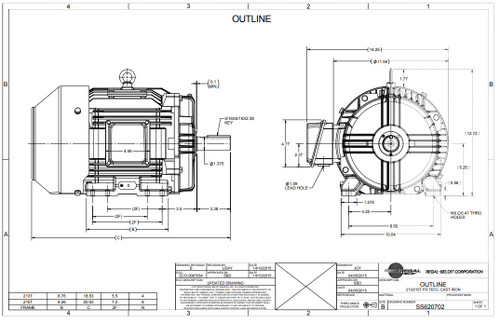

  • NEMA 213T Frame Keyed Shaft 1 3/8" Diameter x 3 3/8"
  • Service Factor: 1.15 - overload protection = None
  • Reversible - Rigid Base Mount - Ball Bearings - Class F Insulation
  • 1 Year Manufacture Warranty

General purpose motor can be used for many applications requiring a three phase Electric motor. Motor has a rigid base mount with a keyed shaft. Wiring diagram on motor name plate. TEFC = Totally Enclosed Fan cooled.

213TTFCD6026 Replaces Leeson 170157.60, 170145.60N, 199010.00, B199010.00, 194298.00, B194298.00, Dayton 44Z324

Specifications
Compliance Tab /content/product_tabs/p65warnings.html
ON SALE LIMITED TIME DISCOUNT
Voltage 230/460V
Horsepower 7-1/2 HP
RPM 1800
Phase Three Phase
Frame 213T
Enclosure TEFC
Hertz 60 Hz
Amperage 19.0/9.5 Amps
Bearings Ball Bearings
Service Factor 1.15
Insulation Class Class F
Mounting Rigid Base
!
