sale
Marathon

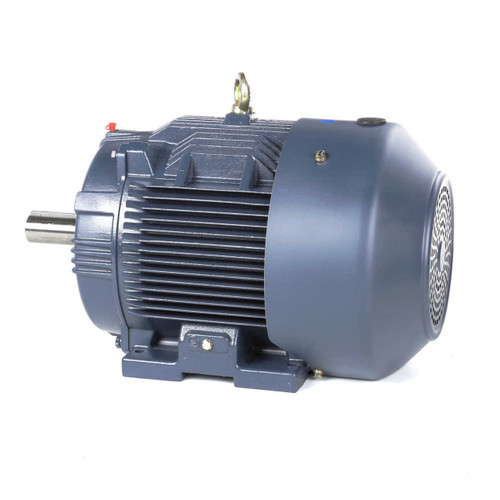

GT1011A Marathon 3 hp 1200 RPM 213T Frame 230/460V TEFC Marathon Electric Motor
(No reviews)
Write a Review
Write a Review
Marathon
GT1011A Marathon 3 hp 1200 RPM 213T Frame 230/460V TEFC Marathon Electric Motor
$1,557.33
$1,262.70
SKU
MGT1011
UPC
7.23E+11
Shipping
Calculated at Checkout
Compliance Tab
/content/product_tabs/p65warnings.html
STATUS
On Sale
Voltage
230/460V
Horsepower
3 HP
RPM
1200
Phase
Three Phase
Frame
213T
Enclosure
TEFC
Hertz
60 Hz
Amperage
8.6/4.3 Amps
Bearings
Ball Bearings
Service Factor
1.15
Insulation Class
Class F
Mounting
Rigid Base
Cross Reference
213TTFC6076 2MXU5, GT1011A DUE TO THE WEIGHT OF THIS ITEM PLEASE CALL US FOR A SHIPPING QUOTE Ships via Freight Truck Only, please provide a delivery address that allows for semi truck for deliveries
- 3 hp 1200 RPM, 8.6/4.3 amps 230/460 Volts 60hz. Three Phase Motor
- NEMA 213T Frame Keyed Shaft 1 3/8" Diameter x 3 3/8"
- Service Factor: 1.15 - overload protection = None
- Reversible - Rigid Base Mount - Ball Bearings - Class F Insulation
- 1 Year Manufacture Warranty
General purpose motor can be used for many applications requiring a three phase Electric motor. Motor has a rigid base mount with a keyed shaft. Wiring diagram on motor name plate. TEFC = Totally Enclosed Fan cooled.
213TTFCD6076 Replaces Leeson 17378.60, 199005.00, B199005.00; Dayton 44Z326
| STATUS | On Sale |
|---|---|
| Voltage | 230/460V |
| Horsepower | 3 HP |
| RPM | 1200 |
| Phase | Three Phase |
| Frame | 213T |
| Enclosure | TEFC |
| Hertz | 60 Hz |
| Amperage | 8.6/4.3 Amps |
| Bearings | Ball Bearings |
| Service Factor | 1.15 |
| Insulation Class | Class F |
| Mounting | Rigid Base |
213TTFC6076 2MXU5, GT1011A DUE TO THE WEIGHT OF THIS ITEM PLEASE CALL US FOR A SHIPPING QUOTE Ships via Freight Truck Only, please provide a delivery address that allows for semi truck for deliveries
