sale
Marathon

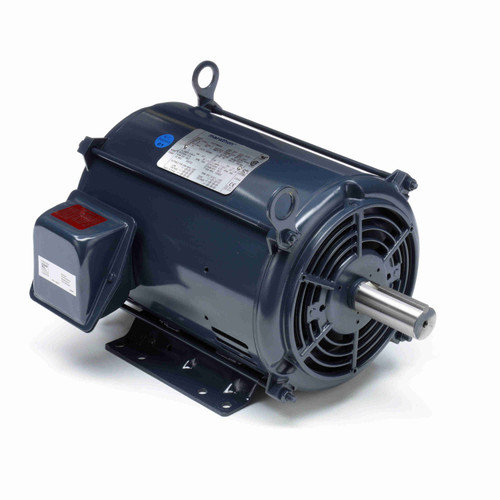

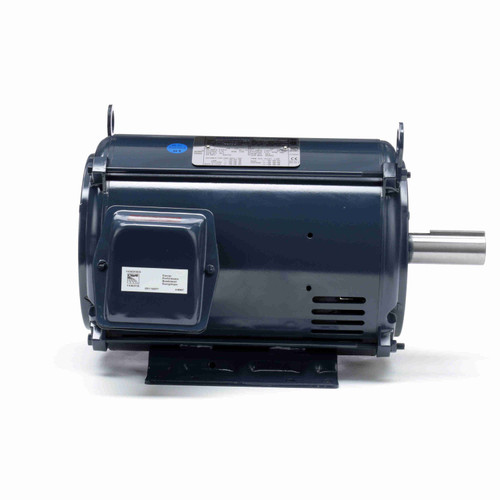

GT0011A Marathon 3 hp 1200 RPM 213T Frame 230/460V Open Drip Marathon Electric Motor
(No reviews)
Write a Review
Write a Review
Marathon
GT0011A Marathon 3 hp 1200 RPM 213T Frame 230/460V Open Drip Marathon Electric Motor
$1,110.90
$951.05
SKU
MGT0011
UPC
7.23E+11
Shipping
Calculated at Checkout
Compliance Tab
/content/product_tabs/p65warnings.html
ON SALE
LIMITED TIME DISCOUNT
Voltage
230/460V
Horsepower
3 HP
RPM
1200
Phase
Three Phase
Frame
213T
Enclosure
ODP
Hertz
60 Hz
Amperage
8.4/4.2 Amps
Bearings
Ball Bearings
Service Factor
1.15
Insulation Class
Class F
Mounting
Rigid Base
- 3 hp 1200 RPM, 8.4/4.2 amps 230/460 Volts 60hz. Three Phase Motor

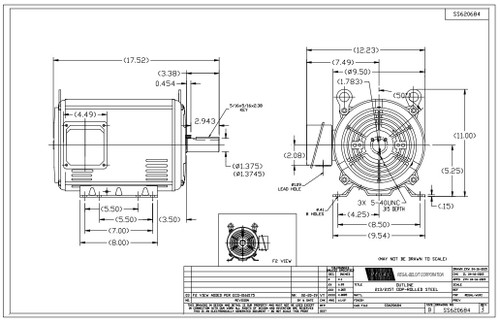

- NEMA 213T Frame Keyed Shaft 1 3/8" Diameter x 3 3/8"
- Service Factor: 1.15 - overload protection = None
- Reversible - Rigid Base Mount - Ball Bearings - Class F Insulation
- 1 Year Manufacture Warranty
General purpose motor can be used for many applications requiring a three phase Electric motor. Motor has a rigid base mount with a keyed shaft. Wiring diagram on motor name plate. ODP = Open Drip Proof.
213TTDBD6076 Replaces Leeson 171574.60, 199688.00, B199688; Dayton 44N962
| Compliance Tab | /content/product_tabs/p65warnings.html |
|---|---|
| ON SALE | LIMITED TIME DISCOUNT |
| Voltage | 230/460V |
| Horsepower | 3 HP |
| RPM | 1200 |
| Phase | Three Phase |
| Frame | 213T |
| Enclosure | ODP |
| Hertz | 60 Hz |
| Amperage | 8.4/4.2 Amps |
| Bearings | Ball Bearings |
| Service Factor | 1.15 |
| Insulation Class | Class F |
| Mounting | Rigid Base |
