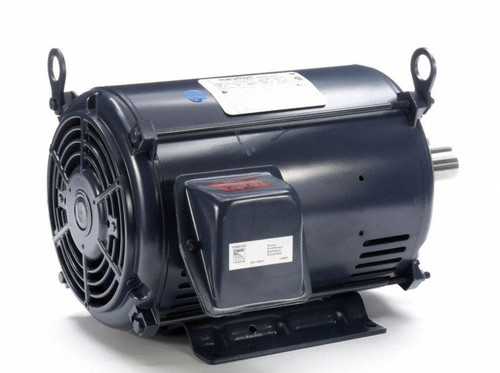

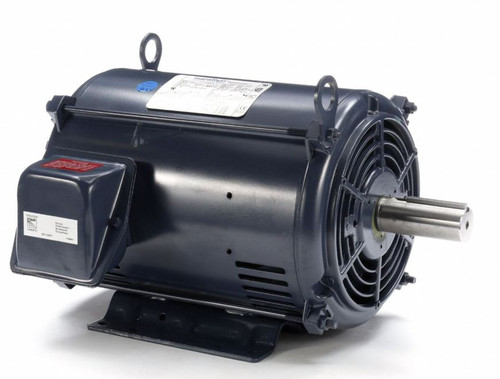

GT0016A Marathon 7.5 hp 1800 RPM 213T Frame 230/460V Open Drip Marathon Electric Motor

GT0016A Marathon 7.5 hp 1800 RPM 213T Frame 230/460V Open Drip Marathon Electric Motor

The GT0016A is a general-purpose three-phase electric motor designed for versatile industrial applications. It replaces Leeson models 140470.00, 170142.60, B199693.00, 199693.00, and Dayton 44N961, providing reliable performance in various settings.

Key Specifications

• Horsepower: 7.5 hp
• RPM: 1800
• Voltage: 230/460 V
• Amperage: 19.8/9.9 A
• Enclosure: Open Drip Proof (ODP)
• Frame / Diameter: NEMA 213T
• Shaft Dimensions: Keyed shaft, 1 3/8" diameter x 3 3/8" length
• Rotation: Reversible
• Bearings: Ball Bearings

Product Features & Fitment

This motor features a rigid base mount for secure installation and includes a wiring diagram on the nameplate for ease of electrical connection. It is built with Class F insulation and a service factor of 1.15, suitable for overload conditions without built-in overload protection. The open drip-proof design allows for ventilation while protecting internal components from moisture.

Cross Reference

• Leeson 140470.00, 170142.60, B199693.00, 199693.00; Dayton 44N961

Warranty

1 Year Manufacturer Warranty
