GT0015A Marathon 7.5 hp 3600 RPM 184T Frame 230/460V Open Drip Marathon Electric Motor

SKU:: GT0015A
UPC:: 7.23E+11
Weight:: 75.00 LBS
Width:: 36.00 (in)
Height:: 28.00 (in)
Depth:: 24.00 (in)
Shipping:: Calculated at Checkout
ON SALE:: LIMITED TIME DISCOUNT
Voltage:: 230/460V
Horsepower:: 7-1/2 HP
RPM:: 3600
Phase:: Three Phase
Frame:: 184T
Enclosure:: ODP
Hertz:: 60 Hz
Amperage:: 17.8/8.9 Amps
Bearings:: Ball Bearings
Service Factor:: 1.15
Insulation Class:: Class F
Mounting:: Rigid Base

Current Stock:

Was: $690.00

Now: $574.94

Quantity:

Adding to cart… The item has been added

Description
Literature
Compliance & Restrictions

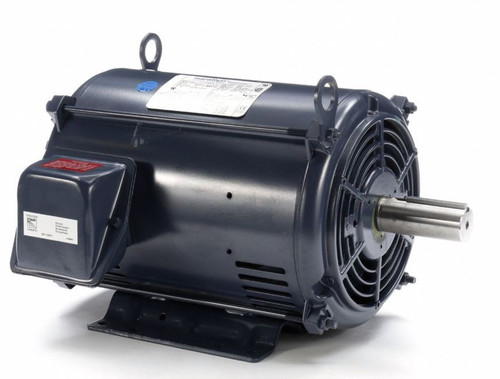

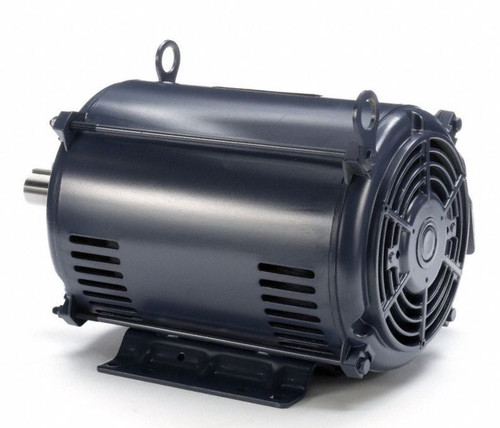

GT0015A Marathon 7.5 hp 3600 RPM 184T Frame 230/460V Open Drip Marathon Electric Motor

This Marathon 7.5 horsepower electric motor operates at 3600 RPM and is designed for three-phase applications requiring reliable performance. It is a general-purpose motor that replaces Leeson models 131988.00, B199692.00, 199692.00, and Dayton 44N957, suitable for various industrial and commercial uses.

Key Specifications

Horsepower: 7.5 hp
RPM: 3600
Voltage: 230/460 V
Amperage: 17.8/8.9 A
Enclosure: Open Drip Proof (ODP)
Frame / Diameter: NEMA 184T
Shaft Dimensions: 1 1/8" Diameter x 2 3/4" Length
Rotation: Reversible
Bearings: Ball Bearings

Product Features & Fitment

This motor features a rigid base mount for stable installation and a keyed shaft for secure coupling. It includes a wiring diagram on the motor nameplate to assist with proper electrical connections. The motor is equipped with Class F insulation and has a service factor of 1.15, though it does not include built-in overload protection.
