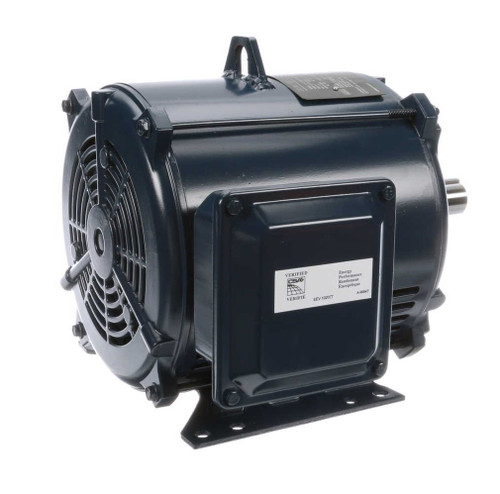

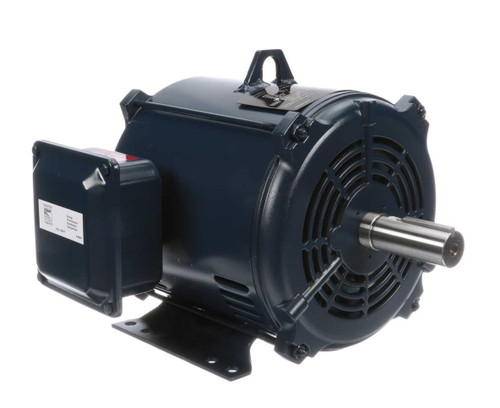

GT0012A Marathon 5 hp 3600 RPM 184T Frame 230/460V Open Drip Marathon Electric Motor

GT0012A Marathon 5 hp 3600 RPM 184T Frame 230/460V Open Drip Marathon Electric Motor

The GT0012A is a general-purpose, three-phase electric motor designed for various industrial applications. It replaces Leeson models 131986.00, B199689.00, 199689.00, G130282.00, and Dayton 44N954, offering reliable performance with a rigid base mount and keyed shaft.

Key Specifications

• Horsepower: 5 hp
• RPM: 3450
• Voltage: 230/460 V
• Amperage: 12.6/6.3 A
• Enclosure: Open Drip Proof (ODP)
• Frame / Diameter: NEMA 184T Frame
• Shaft Dimensions: 1 1/8" Diameter x 2 3/4" Length
• Rotation: Reversible
• Bearings: Ball Bearings

Product Features & Fitment

This motor features a rigid base mount for secure installation and a keyed shaft for reliable power transmission. The wiring diagram is conveniently located on the motor nameplate to assist with proper electrical connections. It is built with Class F insulation and a service factor of 1.15 for enhanced durability under load.

Cross Reference

• Leeson 131986.00, B199689.00, 199689.00, G130282.00; Dayton 44N954

Warranty

1 Year Manufacturer Warranty
