sale
Marathon

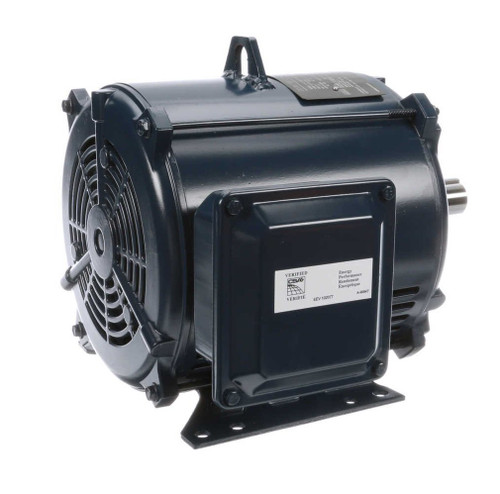

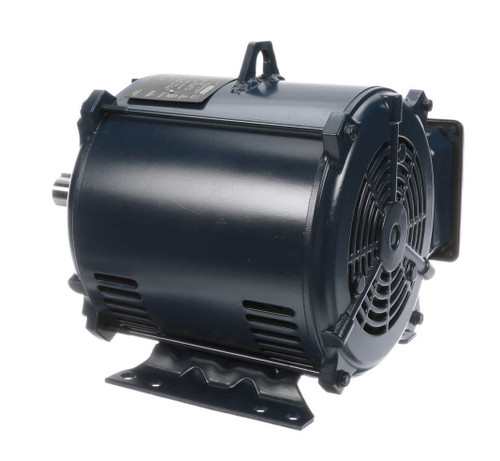

GT0013A Marathon 5 hp 1800 RPM 184T Frame 230/460V Open Drip Marathon Electric Motor
(No reviews)
Write a Review
Write a Review
Marathon
GT0013A Marathon 5 hp 1800 RPM 184T Frame 230/460V Open Drip Marathon Electric Motor
$782.00
$632.44
SKU
GT0013A
Shipping
Calculated at Checkout
Compliance Tab
/content/product_tabs/p65warnings.html
ON SALE
LIMITED TIME DISCOUNT
Voltage
230/460V
Horsepower
5 HP
RPM
1800
Phase
Three Phase
Frame
184T
Enclosure
ODP
Hertz
60 Hz
Amperage
12.6/6.3 Amps
Bearings
Ball Bearings
Service Factor
1.15
Insulation Class
Class F
Mounting
Rigid Base
GT0013A Marathon 5 hp 1800 RPM 184T Frame 230/460V Open Drip Marathon Electric Motor
The GT0013A is a general-purpose, three-phase electric motor designed for a variety of industrial applications. It replaces models such as Leeson 131520.00, B199690.00, 199690.00, and Dayton 44N958, providing reliable performance with a rigid base mount and keyed shaft.
Key Specifications
- Horsepower: 5 hp
- RPM: 1800
- Voltage: 230/460 V
- Amperage: 12.6/6.3 A
- Enclosure: Open Drip Proof (ODP)
- Frame / Diameter: NEMA 184T

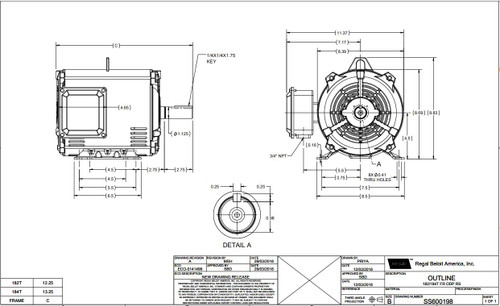

- Shaft Dimensions: 1 1/8" Diameter x 2 3/4" Length
- Rotation: Reversible
- Bearings: Ball Bearings
Product Features & Fitment
This motor features a rigid base mount for secure installation and includes a keyed shaft for reliable coupling. The wiring diagram is conveniently located on the motor nameplate to assist with proper electrical connections. It is equipped with Class F insulation and designed for three-phase power supply at 60 Hz.
Cross Reference
- Leeson 131520.00, B199690.00, 199690.00; Dayton 44N958
Warranty
1 Year Manufacturer Warranty
1 Year Manufacturer Warranty
| Compliance Tab | /content/product_tabs/p65warnings.html |
|---|---|
| ON SALE | LIMITED TIME DISCOUNT |
| Voltage | 230/460V |
| Horsepower | 5 HP |
| RPM | 1800 |
| Phase | Three Phase |
| Frame | 184T |
| Enclosure | ODP |
| Hertz | 60 Hz |
| Amperage | 12.6/6.3 Amps |
| Bearings | Ball Bearings |
| Service Factor | 1.15 |
| Insulation Class | Class F |
| Mounting | Rigid Base |
- Leeson 131520.00, B199690.00, 199690.00; Dayton 44N958
Related Products
sale
Add to Cart
The item has been added

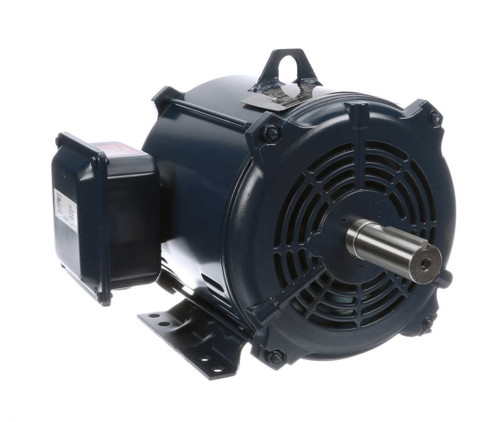

GT0012A Marathon 5 hp 3600 RPM 184T Frame 230/460V Open Drip Marathon Electric Motor
GT0012A Marathon 5 hp 3600 RPM 184T Frame 230/460V Open Drip Marathon Electric Motor
The GT0012A is a general-purpose, three-phase electric motor designed for various industrial applications. It...
$614.45
$525.55
sale
Add to Cart
The item has been added
GT0015A Marathon 7.5 hp 3600 RPM 184T Frame 230/460V Open Drip Marathon Electric Motor
GT0015A Marathon 7.5 hp 3600 RPM 184T Frame 230/460V Open Drip Marathon Electric Motor
This Marathon 7.5 horsepower electric motor operates at 3600 RPM and is designed for three-phase applications...
$690.00
$574.94
sale
Add to Cart
The item has been added

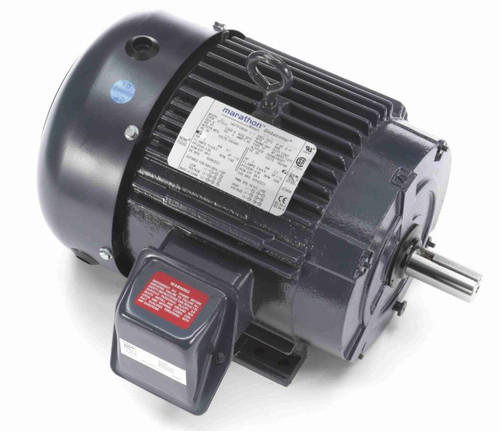

GT1013A Marathon 5 hp 1800 RPM 184T Frame 230/460V TEFC Marathon Electric Motor
