GT1013A Marathon 5 hp 1800 RPM 184T Frame 230/460V TEFC Marathon Electric Motor

GT1013A Marathon 5 hp 1800 RPM 184T Frame 230/460V TEFC Marathon Electric Motor

The GT1013A is a versatile 5 horsepower, three-phase electric motor designed for general-purpose industrial applications. It replaces multiple models including 199007.00, B199007.00, 171322.60, and Dayton 44Z318, offering reliable performance in systems requiring a rugged and efficient motor.

Key Specifications

• Horsepower: 5 hp
• RPM: 1800
• Voltage: 230/460 V
• Amperage: 13.0/6.5 A
• Enclosure: Totally Enclosed Fan Cooled (TEFC)

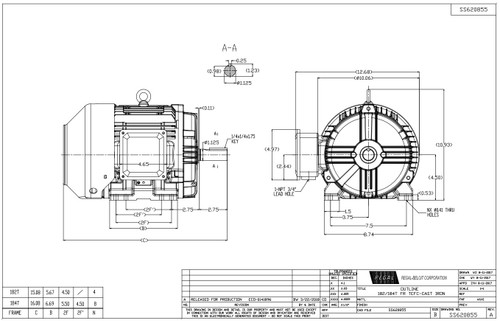

• Frame / Diameter: NEMA 184T Frame
• Shaft Dimensions: Keyed shaft, 1 1/8" diameter x 2 3/4" length
• Rotation: Reversible
• Bearings: Ball Bearings

Product Features & Fitment

This motor features a rigid base mount for stable installation and includes a wiring diagram on the nameplate for straightforward electrical connections. Constructed with cast iron and Class F insulation, it is built for durability and long service life in demanding environments. The motor is dual branded by Leeson and Marathon, ensuring compatibility and quality across multiple industrial applications.

Cross Reference

• Models: 199007.00, B199007.00, 171322.60, 171322.00, 184TTFCD6026, TE129, C184T17FB1, Dayton 44Z318

Warranty

• DATA SHEET
