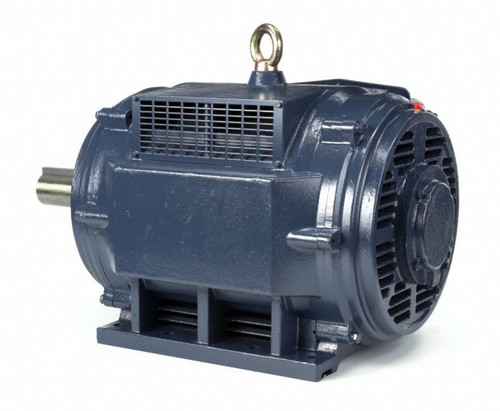

GT0046A Marathon 100 hp 1800 RPM 404T Frame 230/460V Open Drip Marathon Electric Motor
(No reviews)
Write a Review
Write a Review
Marathon
GT0046A Marathon 100 hp 1800 RPM 404T Frame 230/460V Open Drip Marathon Electric Motor
$7,351.84
$6,295.10
SKU
GT0046A
UPC
7.23E+11
Shipping
Calculated at Checkout
Compliance Tab
/content/product_tabs/p65warnings.html
ON SALE
DISCOUNTED PRICES & SHIPS SAME DAY FOR ORDERS PLACED BEFORE 2 PM
Voltage
230/460V
Horsepower
100 HP
RPM
1800
Phase
Three Phase
Frame
404T
Enclosure
ODP
Hertz
60 Hz
Amperage
228.0/114.0 Amps
Bearings
Ball Bearings
Service Factor
1.15
Insulation Class
Class F
Mounting
Rigid Base
GT0046A Marathon 100 hp 1800 RPM 404T Frame 230/460V Open Drip Marathon Electric Motor
The GT0046A is a general-purpose Marathon electric motor designed for three-phase applications requiring reliable performance. It replaces Leeson models 170152.60 and B199723.00, as well as Dayton 44N992, making it suitable for a variety of industrial uses.
Key Specifications
- Horsepower: 100 hp
- RPM: 1800
- Voltage: 230/460 V
- Amperage: 228.0/114.0 A
- Enclosure: Open Drip Proof (ODP)
- Frame / Diameter: NEMA 404T Frame
- Shaft Dimensions: Keyed shaft, 2 7/8" diameter x 7 1/4" length
- Rotation: Reversible
- Bearings: Ball Bearings
Product Features & Fitment
This motor features a rigid base mount for stable installation and includes a keyed shaft for secure coupling. It is equipped with Class F insulation and a service factor of 1.15, though it does not include overload protection. Wiring diagrams are provided on the motor nameplate for ease of electrical connection.
Cross Reference
- Leeson 170152.60, B199723.00; Dayton 44N992
Warranty
1 Year Manufacturer Warranty
1 Year Manufacturer Warranty
