GT0073 Marathon 40 hp 1800 RPM 324T Frame 230/460V Open Drip Marathon Electric Motor
GT0073 Marathon 40 hp 1800 RPM 324T Frame 230/460V Open Drip Marathon Electric Motor
GT0073 Marathon 40 hp 1800 RPM 324T Frame 230/460V Open Drip Marathon Electric Motor
GT0073 Marathon 40 hp 1800 RPM 324T Frame 230/460V Open Drip Marathon Electric Motor
GT0073 Marathon 40 hp 1800 RPM 324T Frame 230/460V Open Drip Marathon Electric Motor
GT0073 Marathon 40 hp 1800 RPM 324T Frame 230/460V Open Drip Marathon Electric Motor

Marathon

GT0073 Marathon 40 hp 1800 RPM 324T Frame 230/460V Open Drip Marathon Electric Motor

(No reviews) Write a Review
$2,934.57
$2,512.75
SKU GT0073
UPC 7.23E+11
Shipping Calculated at Checkout
Compliance Tab /content/product_tabs/p65warnings.html
ON SALE LIMITED TIME DISCOUNT
Voltage 230/460V
Horsepower 40 HP
RPM 1800
Phase Three Phase
Frame 324T
Enclosure ODP
Hertz 60 Hz
Amperage 95.5/48.0 Amps
Bearings Ball Bearings
Service Factor 1.15
Insulation Class Class F
Mounting Rigid Base
Adding to cart… The item has been added
Description
  • 40 hp 1780 RPM, 95.5/48.0 amps 230/460 Volts 60hz. Three Phase Motor

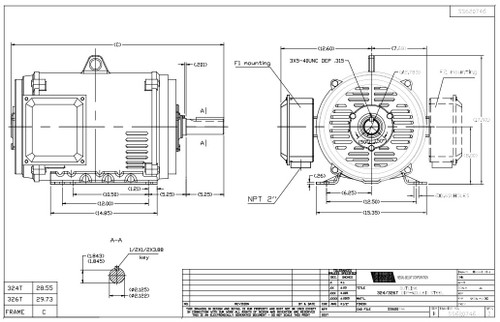

  • NEMA 324T Frame Keyed Shaft 2 1/8 " Diameter x 4 1/4"
  • Service Factor: 1.15 - overload protection = None
  • Reversible - Rigid Base Mount - Ball Bearings - Class F Insulation
  • 1 Year Manufacture Warranty

General purpose motor can be used for many applications requiring a three phase Electric motor. Motor has a rigid base mount with a keyed shaft. Wiring diagram on motor name plate. ODP = Open Drip Proof.

324TTDBD6026 Replaces Leeson 170017.60, B199711.00, 199711.00; Dayton 454X64

Specifications
Compliance Tab /content/product_tabs/p65warnings.html
ON SALE LIMITED TIME DISCOUNT
Voltage 230/460V
Horsepower 40 HP
RPM 1800
Phase Three Phase
Frame 324T
Enclosure ODP
Hertz 60 Hz
Amperage 95.5/48.0 Amps
Bearings Ball Bearings
Service Factor 1.15
Insulation Class Class F
Mounting Rigid Base
!
