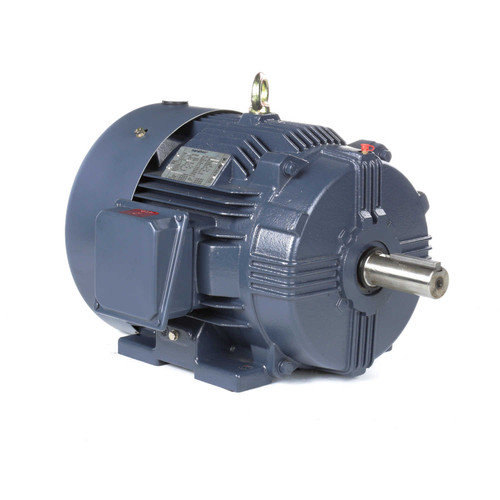

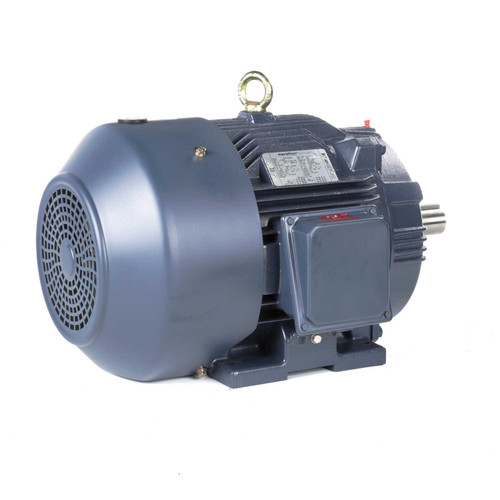

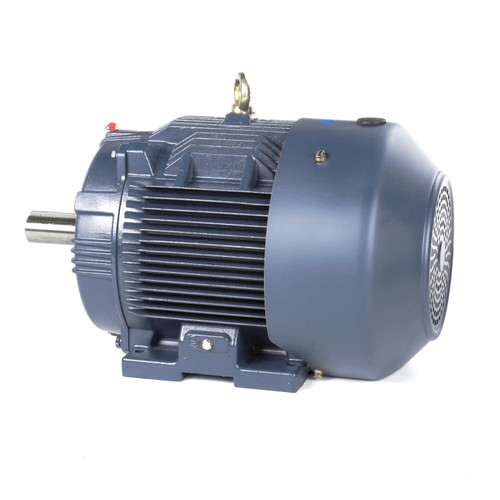

GT1021A Marathon 15 hp 3600 RPM 254T Frame 230/460V TEFC Marathon Electric Motor
GT1021A Marathon 15 hp 3600 RPM 254T Frame 230/460V TEFC Marathon Electric Motor
GT1021A Marathon 15 hp 3600 RPM 254T Frame 230/460V TEFC Marathon Electric Motor
GT1021A Marathon 15 hp 3600 RPM 254T Frame 230/460V TEFC Marathon Electric Motor
GT1021A Marathon 15 hp 3600 RPM 254T Frame 230/460V TEFC Marathon Electric Motor
GT1021A Marathon 15 hp 3600 RPM 254T Frame 230/460V TEFC Marathon Electric Motor
GT1021A Marathon 15 hp 3600 RPM 254T Frame 230/460V TEFC Marathon Electric Motor
GT1021A Marathon 15 hp 3600 RPM 254T Frame 230/460V TEFC Marathon Electric Motor
GT1021A Marathon 15 hp 3600 RPM 254T Frame 230/460V TEFC Marathon Electric Motor
GT1021A Marathon 15 hp 3600 RPM 254T Frame 230/460V TEFC Marathon Electric Motor

Marathon

GT1021A Marathon 15 hp 3600 RPM 254T Frame 230/460V TEFC Marathon Electric Motor

(No reviews) Write a Review
$1,824.71
$1,422.55
SKU MGT1021
UPC 7.23E+11
Shipping Calculated at Checkout
Compliance Tab /content/product_tabs/p65warnings.html
ON SALE LIMITED TIME DISCOUNT
Voltage 230/460V
Horsepower 15 HP
RPM 3600
Phase Three Phase
Frame 254T
Enclosure TEFC
Hertz 60 Hz
Amperage 35.5/17.8 Amps
Bearings Ball Bearings
Service Factor 1.15
Insulation Class Class F
Mounting Rigid Base
Adding to cart… The item has been added
Description
  • 15 hp 3600 RPM, 35.5/17.8 amps 230/460 Volts 60hz. Three Phase Motor

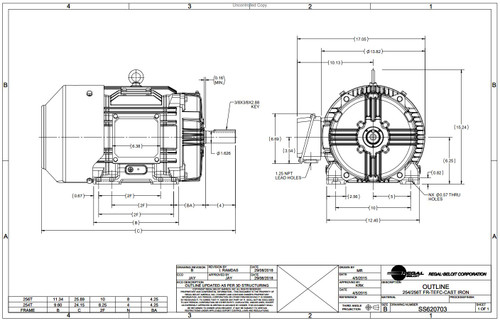

  • NEMA 254T Frame Keyed Shaft 1 5/8" Diameter x 4"
  • Service Factor: 1.15 - overload protection = None
  • Reversible - Rigid Base Mount - Ball Bearings - Class F Insulation
  • 1 Year Manufacture Warranty

General purpose motor can be used for many applications requiring a three phase Electric motor. Motor has a rigid base mount with a keyed shaft. Wiring diagram on motor name plate. TEFC = Totally Enclosed Fan cooled.

Dual Branded Leeson/Marathon Electric Motor
254TTFCD6001 Replaces Leeson 170062.60, 199015.00, B199015.00, C254T34FB1, D254T34FB11, LM15670; Dayton 44Z334

Warranty Information
Specifications
Compliance Tab /content/product_tabs/p65warnings.html
ON SALE LIMITED TIME DISCOUNT
Voltage 230/460V
Horsepower 15 HP
RPM 3600
Phase Three Phase
Frame 254T
Enclosure TEFC
Hertz 60 Hz
Amperage 35.5/17.8 Amps
Bearings Ball Bearings
Service Factor 1.15
Insulation Class Class F
Mounting Rigid Base
!
