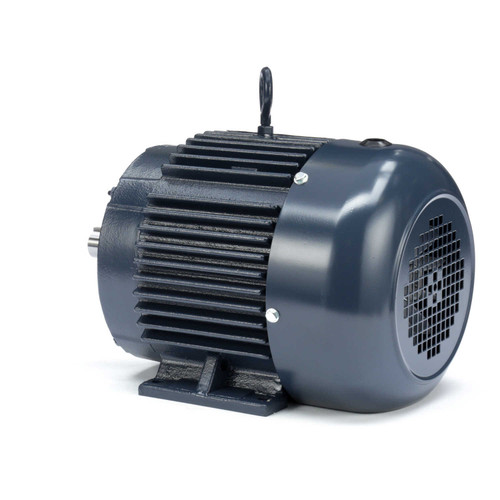

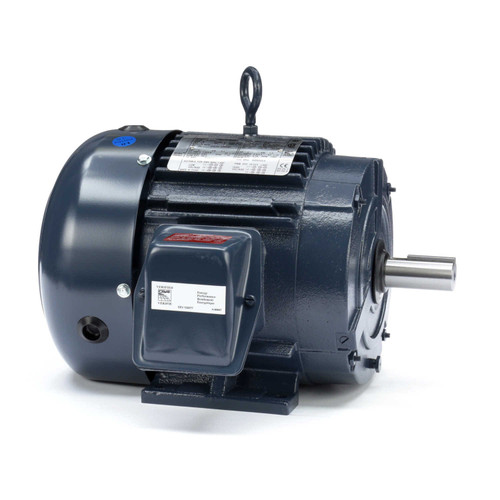

GT1010A Marathon 3 hp 1800 RPM 182T Frame 230/460V TEFC Marathon Electric Motor

GT1010A Marathon 3 hp 1800 RPM 182T Frame 230/460V TEFC Marathon Electric Motor

The GT1010A is a general-purpose, three-phase electric motor designed for a wide range of industrial applications. This dual-branded Leeson/Marathon motor replaces models such as Leeson C182T17FB1 and Dayton 44Z312, offering reliable performance with a totally enclosed fan-cooled (TEFC) design.

Key Specifications

• Horsepower: 3 hp
• RPM: 1800
• Voltage: 230/460 V
• Amperage: 8.0/4.0 A
• Enclosure: Totally Enclosed Fan Cooled (TEFC)
• Frame / Diameter: NEMA 182T
• Shaft Dimensions: 1 1/8" Diameter x 2 3/4" Length, keyed
• Rotation: Reversible
• Bearings: Ball Bearings

Product Features & Fitment

This motor features a rigid base mount for secure installation and includes a keyed shaft for reliable coupling. The wiring diagram is conveniently located on the motor nameplate to assist with proper electrical connections. The motor is built with Class F insulation and a service factor of 1.15, though it does not include overload protection.

Cross Reference

• Leeson C182T17FB1, 171320.60, 199004.00, B199004.00; Dayton 44Z312
