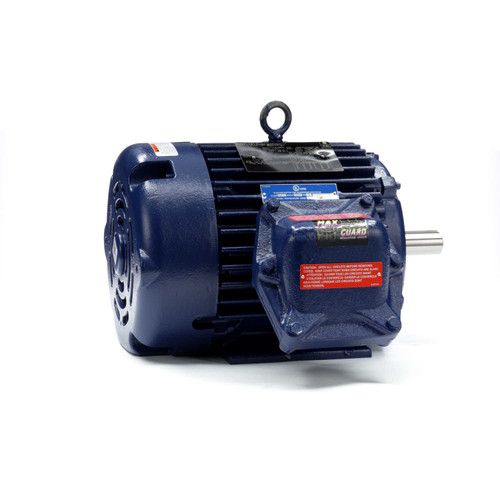

U004A Marathon 3 hp 1800 RPM 182T 230/460V TEFC Explosion Proof Marathon Electric Motor
(No reviews)
Write a Review
Write a Review
Marathon
U004A Marathon 3 hp 1800 RPM 182T 230/460V TEFC Explosion Proof Marathon Electric Motor
$1,199.57
$1,026.95
SKU
U004A
UPC
7.23E+11
Shipping
Calculated at Checkout
Compliance Tab
/content/product_tabs/p65warnings.html
ON SALE
LIMITED TIME DISCOUNT
Voltage
230/460V
Horsepower
3 HP
RPM
1800
Phase
Three Phase
Frame
182T
Enclosure
TEFC
Hertz
60 Hz
Amperage
8.0/4.0 Amps
Service Factor
1.15
Insulation Class
Class F
- 3 hp 1800 RPM, 8.0/4.0 amps 230/460 Volts 60hz. Three Phase Motor

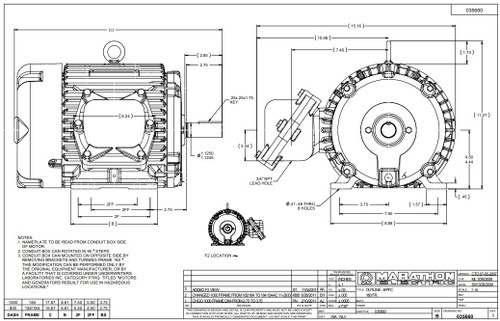

- NEMA 182T Frame Keyed Shaft 1 1/8" Diameter x 2 3/4"
- Explosion Proof: Class 1, Group D; Class II, Group F & G
- Service Factor: 1.15 - overload protection = Automatic
- Meets temperature code T3B, Class F Insulation
- Suitable for use on VFD at 208 volt
- TEFC Explosion Proof Fan cooled
- 1 Year Manufacture Warranty
Explosion Proof for hazardous locations. Underwrites Laboratories and Canadian Standards Association Listed. Explosion proof conduit box included at no extra cost. 1 year manufacture warranty.
182TTGN6526, 825085.00, Dayton 39W946
Replaces Marathon U004, U004A, 182TTGCD6526
| Compliance Tab | /content/product_tabs/p65warnings.html |
|---|---|
| ON SALE | LIMITED TIME DISCOUNT |
| Voltage | 230/460V |
| Horsepower | 3 HP |
| RPM | 1800 |
| Phase | Three Phase |
| Frame | 182T |
| Enclosure | TEFC |
| Hertz | 60 Hz |
| Amperage | 8.0/4.0 Amps |
| Service Factor | 1.15 |
| Insulation Class | Class F |
