Marathon

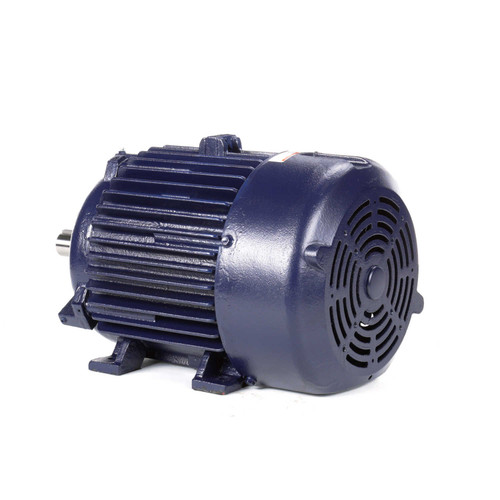

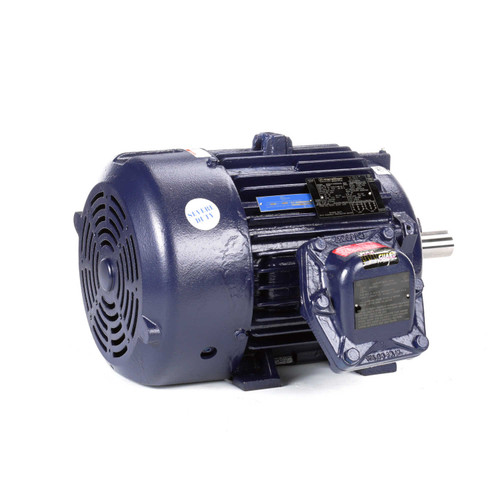

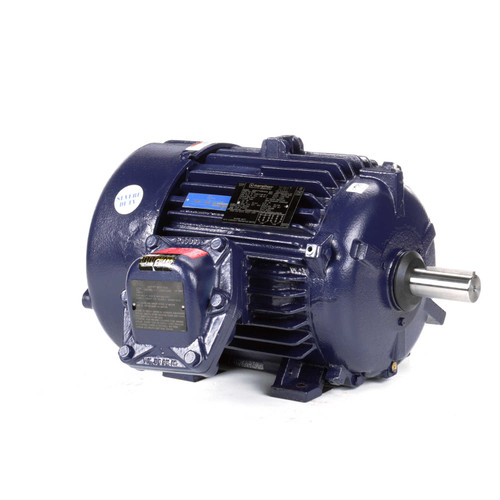

E503A Marathon 15 hp 1800 RPM 254T 230/460V TEFC Explosion Proof Marathon Electric Motor
(No reviews)
Write a Review
Write a Review
Marathon
E503A Marathon 15 hp 1800 RPM 254T 230/460V TEFC Explosion Proof Marathon Electric Motor
$2,395.95
SKU
ME503
Availability
LIMITED STOCK
Shipping
Calculated at Checkout
Compliance Tab
/content/product_tabs/p65warnings.html
STATUS
DISCONTINUED
Voltage
230/460V
Horsepower
15 HP
RPM
1800
Phase
Three Phase
Frame
254T
Enclosure
TEFC
Hertz
60 Hz
Amperage
37.5/18.8 Amps
Service Factor
1.0
Insulation Class
Class F
- 15 hp 1800 RPM, 37.5/18.8 amps 230/460 Volts 60hz. Three Phase Motor
- NEMA 254T Frame Keyed Shaft 1 5/8" Diameter x 4"
- Explosion Proof: Class 1, Group D; Class II, Group F & G
- Service Factor: 1.0, Class F Insulation
- Overload Protection: Normally closed thermostats (must be connected to control circuit)
- Meets temperature code T3B, Shaft slinger
- TEFC - Explosion Proof Fan cooled
- 1 Year Manufacture Warranty
Updated variant of E503. Explosion Proof for hazardous locations. Underwrites Laboratories and Canadian Standards Association Listed. Explosion proof conduit box included at no extra cost. 1 year manufacture warranty. 254TTGCD6531
254TTGN6531, Replaces Leeson 825093.00, Dayton 5VYG6
| Compliance Tab | /content/product_tabs/p65warnings.html |
|---|---|
| STATUS | DISCONTINUED |
| Voltage | 230/460V |
| Horsepower | 15 HP |
| RPM | 1800 |
| Phase | Three Phase |
| Frame | 254T |
| Enclosure | TEFC |
| Hertz | 60 Hz |
| Amperage | 37.5/18.8 Amps |
| Service Factor | 1.0 |
| Insulation Class | Class F |
