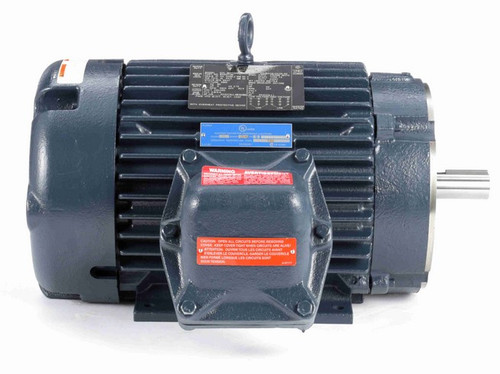

825127.00 Leeson 5 hp 3600 RPM 230/460V 184TC Frame TEFC Explosion-Proof (Rigid Base) 3-Phase Motor
825127.00 Leeson 5 hp 3600 RPM 230/460V 184TC Frame TEFC Explosion-Proof (Rigid Base) 3-Phase Motor
825127.00 Leeson 5 hp 3600 RPM 230/460V 184TC Frame TEFC Explosion-Proof (Rigid Base) 3-Phase Motor
825127.00 Leeson 5 hp 3600 RPM 230/460V 184TC Frame TEFC Explosion-Proof (Rigid Base) 3-Phase Motor
825127.00 Leeson 5 hp 3600 RPM 230/460V 184TC Frame TEFC Explosion-Proof (Rigid Base) 3-Phase Motor
825127.00 Leeson 5 hp 3600 RPM 230/460V 184TC Frame TEFC Explosion-Proof (Rigid Base) 3-Phase Motor

Leeson

825127.00 Leeson 5 hp 3600 RPM 230/460V 184TC Frame TEFC Explosion-Proof (Rigid Base) 3-Phase Motor

(No reviews) Write a Review
$2,040.10
$1,548.59
SKU 825127
UPC 6.92E+11
Shipping Calculated at Checkout
Compliance Tab /content/product_tabs/p65warnings.html
Voltage 230/460V
Horsepower 5 HP
RPM 3600
Phase Three Phase
Frame 184TC
Enclosure TEFC
Hertz 60 Hz
Amperage 11.8/5.9 Amps
Bearings Ball Bearings
Service Factor 1.15
Insulation Class Class B
Mounting Rigid Base
Adding to cart… The item has been added
Description
  • 5 hp 3600 RPM, 11.8/5.9 amps 230/460 Volts 60 Hz. 3-Phase Cast Iron Motor
  • NEMA 184TC Frame Keyed Shaft 1 1/8" Diameter x 2 3/4"
  • Service Factor: 1.15, Overload Protection = Thermostat
  • Rigid Base, Reversible, Ball Bearings - Class B Insulation
  • 1 Year Manufacture Warranty

Explosion-Proof motor for use in hazardous environments with a C-face mount. DIV 1 EXP PROOF CL I GR CD CL II GR FG T3C. Bolt holes are 3 3/4" on center measured across the shaft. Wiring diagram on motor name plate. TEFC = Totally Enclosed Fan-Cooled. 825127.00

Specifications
Compliance Tab /content/product_tabs/p65warnings.html
Voltage 230/460V
Horsepower 5 HP
RPM 3600
Phase Three Phase
Frame 184TC
Enclosure TEFC
Hertz 60 Hz
Amperage 11.8/5.9 Amps
Bearings Ball Bearings
Service Factor 1.15
Insulation Class Class B
Mounting Rigid Base
!
