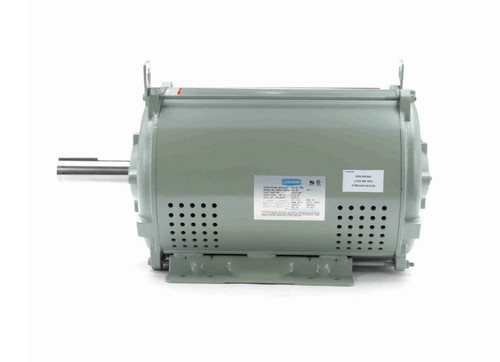

851034.00 Leeson 16 hp 1800 RPM 115/230V 256TZ Frame (Rigid Base) ODP 1-Phase Grain Stirring Motor
851034.00 Leeson 16 hp 1800 RPM 115/230V 256TZ Frame (Rigid Base) ODP 1-Phase Grain Stirring Motor
851034.00 Leeson 16 hp 1800 RPM 115/230V 256TZ Frame (Rigid Base) ODP 1-Phase Grain Stirring Motor
851034.00 Leeson 16 hp 1800 RPM 115/230V 256TZ Frame (Rigid Base) ODP 1-Phase Grain Stirring Motor
851034.00 Leeson 16 hp 1800 RPM 115/230V 256TZ Frame (Rigid Base) ODP 1-Phase Grain Stirring Motor
851034.00 Leeson 16 hp 1800 RPM 115/230V 256TZ Frame (Rigid Base) ODP 1-Phase Grain Stirring Motor

Leeson

851034.00 Leeson 16 hp 1800 RPM 115/230V 256TZ Frame (Rigid Base) ODP 1-Phase Grain Stirring Motor

(No reviews) Write a Review
$3,095.21
$2,580.95
SKU 851034
UPC 6.92E+11
Shipping Calculated at Checkout
Compliance Tab /content/product_tabs/p65warnings.html
Voltage 115/230V
Horsepower 16 HP
RPM 1800
Phase Single Phase
Frame 256TZ
Enclosure ODP
Hertz 60 Hz
Amperage 70/61 Amps
Bearings Ball Bearings
Service Factor 1.15
Insulation Class Class F
Mounting Rigid Base
Adding to cart… The item has been added
Description
  • 16 hp 1800 RPM, 70/61 amps 115/230 Volts 60 Hz. Capacitor Start/Run 1-Phase Motor
  • NEMA 256TZ Frame Keyed Shaft 1 5/8" Diameter x 5"
  • Service Factor: 1.15, Overload Protection = None
  • Rigid Base, Reversible, Ball Bearings - Class F Insulation
  • 1 Year Manufacture Warranty

Centrifugal Fan motor designed for grain drying application. Wiring diagram on motor name plate. ODP = Open Drip Proof. 851034.00

Specifications
Compliance Tab /content/product_tabs/p65warnings.html
Voltage 115/230V
Horsepower 16 HP
RPM 1800
Phase Single Phase
Frame 256TZ
Enclosure ODP
Hertz 60 Hz
Amperage 70/61 Amps
Bearings Ball Bearings
Service Factor 1.15
Insulation Class Class F
Mounting Rigid Base
!
