8726 Nidec 1/3 hp 1625 RPM 230V 5.6" Dia. (No Base) 3-Speed Open Fan Motor

8726 Nidec 1/3 hp 1625 RPM 230V 5.6" Dia. (No Base) 3-Speed Open Fan Motor

This Nidec 1/3 horsepower, 3-speed open fan motor is designed for direct drive applications in central HVAC systems. It serves as a reliable replacement motor, delivering consistent performance with a 1625 RPM speed and 230V operation.

Key Specifications

• Horsepower: 1/3 hp
• RPM: 1625
• Voltage: 230V
• Amperage: 1.9 amps
• Enclosure: Open
• Frame / Diameter: 5.6" diameter rolled steel frame
• Shaft Dimensions: 7" x 1/2" x 7" flat shaft
• Bearings: Sleeve bearings
• Rotation: Clockwise (CW) lead end

Product Features & Fitment

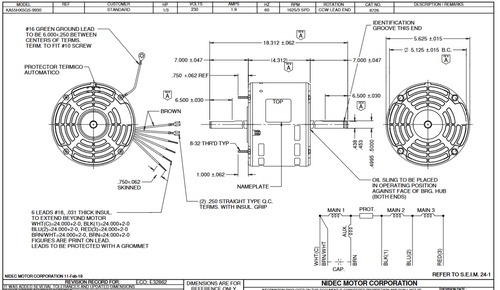

This motor features a permanent split capacitor (PSC) design with a service factor of 1 and automatic overload protection for enhanced durability. It is base mount compatible and includes a wiring diagram located on the motor nameplate for straightforward installation.

Warranty

1 Year Manufacturer Warranty
