8D40P3C Nidec 40 hp 1200 RPM 364T Frame (Rigid Base) 460V TEFC 3-Phase Inverter Duty Electric Motor
8D40P3C Nidec 40 hp 1200 RPM 364T Frame (Rigid Base) 460V TEFC 3-Phase Inverter Duty Electric Motor
8D40P3C Nidec 40 hp 1200 RPM 364T Frame (Rigid Base) 460V TEFC 3-Phase Inverter Duty Electric Motor
8D40P3C Nidec 40 hp 1200 RPM 364T Frame (Rigid Base) 460V TEFC 3-Phase Inverter Duty Electric Motor

Nidec

8D40P3C Nidec 40 hp 1200 RPM 364T Frame (Rigid Base) 460V TEFC 3-Phase Inverter Duty Electric Motor

(No reviews) Write a Review
$5,080.70
$4,535.83
SKU 8D40P3C
Shipping Calculated at Checkout
Compliance Tab /content/product_tabs/p65warnings.html
ON SALE LIMITED TIME DISCOUNT
Voltage 460V
Horsepower 40 HP
RPM 1200
Phase Three Phase
Frame 364T
Enclosure TEFC
Hertz 60 Hz
Type Inverter Duty
Amperage 47.0 Amps
Bearings Ball Bearings
Service Factor 1.15
Insulation Class Class F
Mounting Rigid Base
Duty Inverter Duty
Adding to cart… The item has been added
Description
  • 40 hp 1200 RPM, 47.0 amps 460 Volts 60 Hz Three Phase Motor

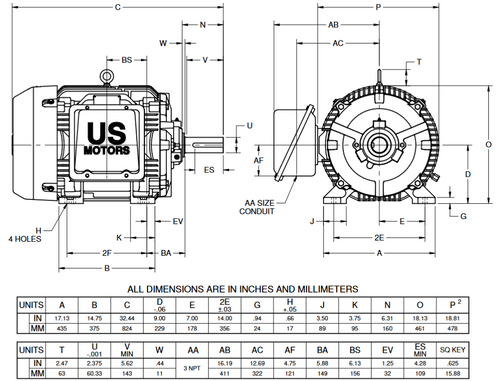

  • NEMA 364T Cast Iron Frame, Keyed Shaft 2 3/8" Diameter x 5 7/8"
  • Service Factor: 1.15, Overload protection = None
  • Rigid Base Mount,  Ball Bearings, Class F Insulation, Reversible
  • 5 Year Manufacture Warranty, 3 year on inverter power

Corrosion resistant inverter duty motor is designed for use in petro-chemical and similar industries. Self-Certified Class 1, Division 2, Groups A, B, C, and D. Wiring diagram on motor name plate. TEFC = Totally Enclosed Fan cooled. GD41

Specifications
Compliance Tab /content/product_tabs/p65warnings.html
ON SALE LIMITED TIME DISCOUNT
Voltage 460V
Horsepower 40 HP
RPM 1200
Phase Three Phase
Frame 364T
Enclosure TEFC
Hertz 60 Hz
Type Inverter Duty
Amperage 47.0 Amps
Bearings Ball Bearings
Service Factor 1.15
Insulation Class Class F
Mounting Rigid Base
Duty Inverter Duty
!
