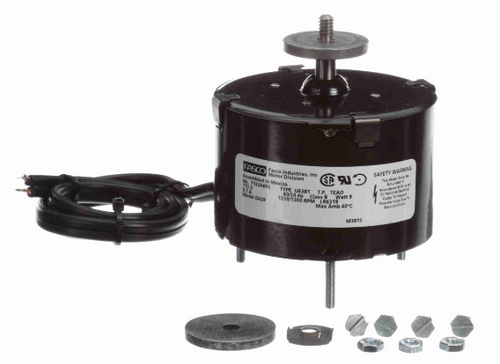

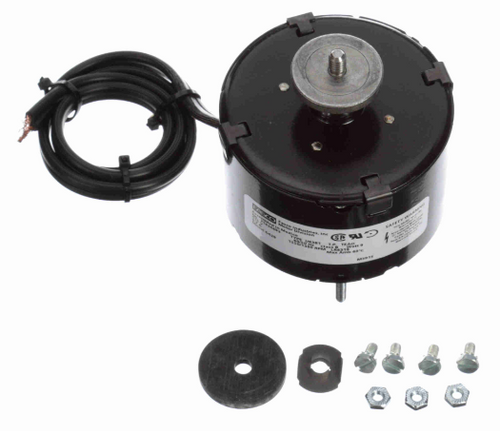

Fasco D429 Motor | 9 Watt 1550 RPM CCW 115 Volts Unit Bearing Motor

Fasco D429 Motor | 9 Watt 1550 RPM CCW 115 Volts Unit Bearing Motor

The Fasco D429 is a 9-watt, 1550 RPM unit bearing motor designed for condenser fans, evaporative coolers, walk-in coolers, and refrigerated display cases. It serves as a replacement for unit bearing motors with counterclockwise rotation measured from the opposite shaft end, differing from the Fasco standard rotation measurement.

Key Specifications

• Wattage: 9 Watt
• RPM: 1550
• Voltage: 115 Volts
• Amperage: 0.6 Amps
• Rotation: Counterclockwise (CCW) opposite shaft end
• Shaft Dimensions: Threaded hub mount
• Mounting: Stud mount with 3 mounting studs on a 2.84" bolt circle, 120° apart
• Lead Length: 22" leads
• Bearings: Sleeve bearings
• Motor Length (less shaft): 3"

Product Features & Fitment

This motor features a stud mount configuration with three 8-32 studs located opposite the shaft end on a standard 2.84" bolt circle, facilitating secure installation. The rotation is specified opposite the shaft end, which is important for compatibility when replacing unit bearing motors. The shaft is threaded for hub mounting, and the motor comes with 22-inch leads for easy electrical connection.

Cross Reference

• GE # 5411

Warranty

1 Year Manufacturer Warranty
