9377 Nidec 1/3 hp 1000 RPM 115V 5.6" Dia. (No Base) 4-Speed OAO Fan Motor

SKU:: 9377
UPC:
Weight:: 16.00 LBS
Width:: 12.00 (in)
Height:: 13.00 (in)
Depth:: 13.00 (in)
Shipping:: Free Shipping
ON SALE:: LIMITED TIME DISCOUNT
Voltage:: 115V
Horsepower:: 1/3 HP
RPM:: 1000
Hertz:: 60 Hz
Type:: PSC (Permanent Split Capacitor)
Amperage:: 6.0 Amps
Bearings:: Sleeve Bearings
Speeds:: 4-Speed
Insulation Class:: Class B

Current Stock:

Was: $308.20

Now: $275.66

Quantity:

Adding to cart… The item has been added

Description
Literature
Compliance & Restrictions

9377 Nidec 1/3 hp 1000 RPM 115V 5.6" Dia. (No Base) 4-Speed OAO Fan Motor

This Nidec 9377 direct drive fan motor is designed for central HVAC systems, providing reliable performance with four-speed operation. It serves as a replacement motor for applications requiring a 1/3 horsepower, 1000 RPM motor with a 5.6-inch diameter frame.

Key Specifications

Horsepower: 1/3 hp
RPM: 1000 (4-speed)
Voltage: 115V
Amperage: 6.0 amps
Enclosure: Open Air Over (OAO)
Frame / Diameter: 5.6" diameter, rolled steel frame
Shaft Dimensions: 1/2" diameter x 5 1/4" length, flat shaft
Rotation: Reversible
Bearings: Sleeve bearings

Product Features & Fitment

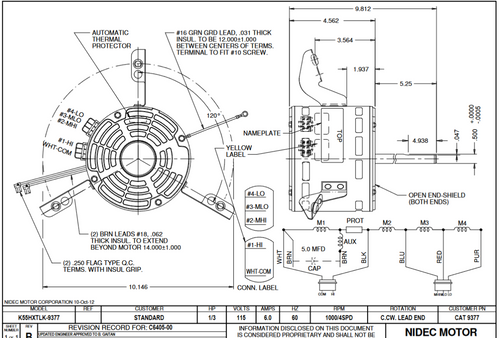

This motor features a flex mount design for versatile installation and includes automatic overload protection for enhanced durability. The wiring diagram is conveniently located on the motor nameplate to assist with proper electrical connections.
