Aftermarket Broan Vent Fan Assembly S97005906

This aftermarket replacement motor assembly is designed for Broan vent fans, specifically fitting models 162-A and 162-B. It serves as a direct OEM replacement for part number 97005906, ensuring reliable performance in ventilation applications.

Key Specifications

RPM: 3000
Voltage: 120V
Amperage: 0.73 Amp
Frame / Diameter: C Frame
Shaft Dimensions: 1/4" x 3"
Rotation: Clockwise (CW) Shaft End

Product Features & Fitment

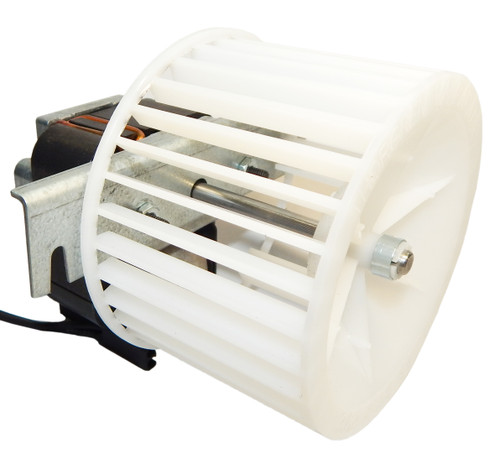

The assembly includes the motor, blower wheel (3.75" diameter x 2.5"), and a mounting bracket measuring 4 7/8" in length with bracket mounting holes spaced 4.25" on center. It features a 2-prong plug for power connection. Note that this product does not include a fan thermostat. Cross-reference part numbers include 0112501, 101-1883, BQ-7328, P-6393-1, and P-6397, and it may also serve as a replacement for part number 99080097.
