S97017450 | Broan Fan & Motor Assembly

Broan Fan & Motor Assembly (S97017450)

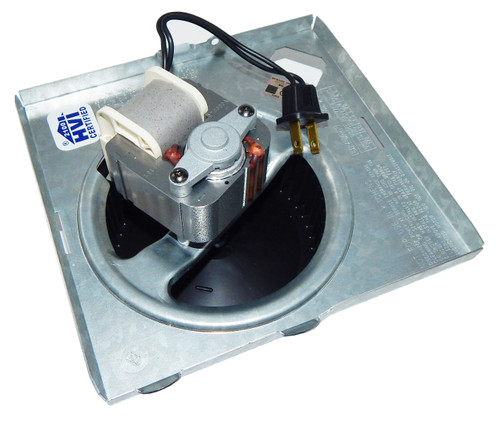

This Broan S97017450 fan and motor assembly is a direct replacement unit designed for use with Broan Model 771 and 771-A housings. It combines the motor, blower wheel, and mounting plate into a single assembly for efficient ventilation applications.

Key Specifications

• RPM: 3000
• Voltage: 115V
• Amperage: 1.5 amps
• Frame / Diameter: C-Frame
• Shaft Dimensions: 7/32" x 1-7/8"
• Rotation: Counterclockwise (CCW)

Product Features & Fitment

The assembly includes the motor, blower wheel, and a 7-1/2" x 7-1/8" motor mounting plate for straightforward installation. It features a 2-prong 115-volt plug and is specifically designed to fit Broan Model 771 and 771-A housings only. The replacement unit is supplied as shown in the product image.

Warranty

1 Year Manufacturer Warranty
