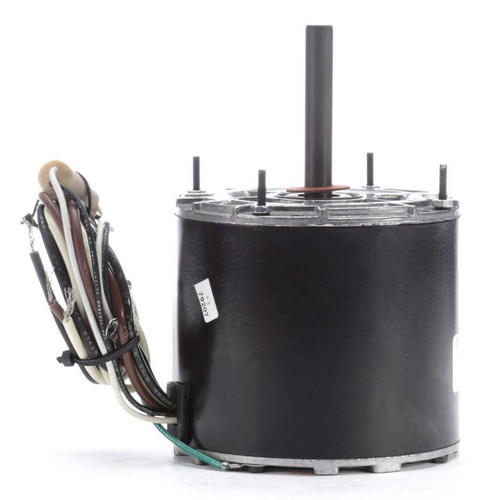

Model 9723 Century Condenser Fan Motor 5" Diameter Multifit 1/4, 1/5, 1/6 hp; 1075 RPM

Model 9723 Century Condenser Fan Motor 5" Diameter Multifit 1/4, 1/5, 1/6 hp; 1075 RPM

The Century Model 9723 MultiFit condenser fan motor is a versatile replacement designed for 5" diameter condenser fan applications. It fits multiple OEM motors with 1/4, 1/5, and 1/6 horsepower ratings, offering a reliable solution for HVAC condenser fan motor replacements.

Key Specifications

• Horsepower: 1/4, 1/5, 1/6 HP
• RPM: 1075
• Voltage: 208-230 V
• Amperage: 2.0 A
• Enclosure: Totally Enclosed Air Over (TEAO)
• Frame / Diameter: 42 frame (5" diameter)
• Shaft Dimensions: 1/2" diameter x 3" length
• Rotation: Reversible
• Bearings: Ball Bearings

Product Features & Fitment

This motor features the MultiFit 3-in-1™ mounting system, compatible with mounting bolt circles of 4.33", 4.42", and 4.62", allowing it to replace hundreds of condenser fan motors with a simple three-wire connection (L1, L2, and capacitor). It supports all-angle mounting and can be installed with the shaft oriented up or down.

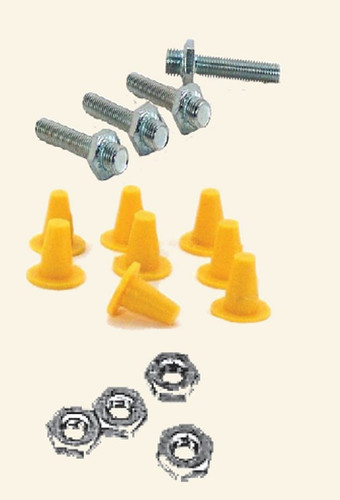

Included accessories are durable collar studs with 5/8" extension and 8-32 threads, extra mounting nuts with a locking feature, easy-to-install drain plugs, and detailed mounting instructions with clear diagrams. The motor requires a 7.5 MFD/370 VAC capacitor (not included), and a water-resistant reversing plug is provided for enhanced durability.

Cross Reference

• replace hundreds of 1/4, 1/5, 1/6 HP 42 frame (5” dia.) condenser fan applications – with one simple connection
• MultiFit motors replace motors with a 4.33, 4.42 and 4.62 inch mounting bolt circle
