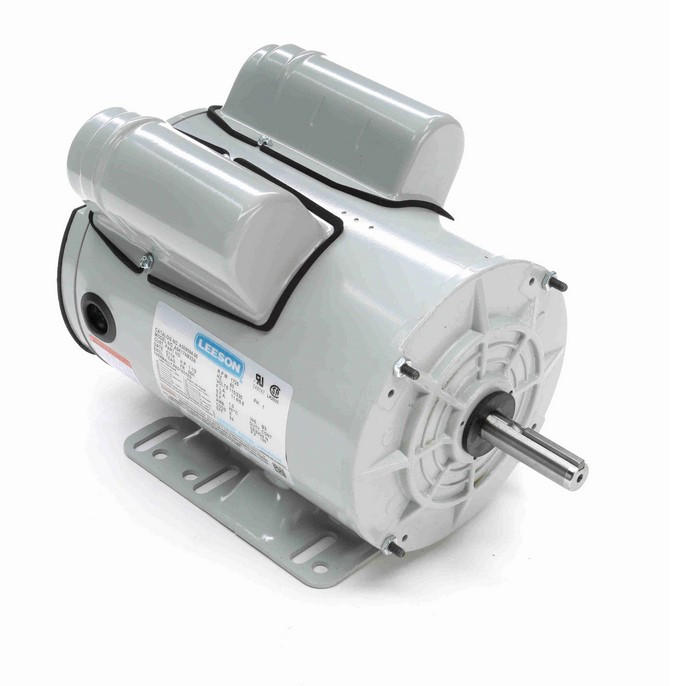

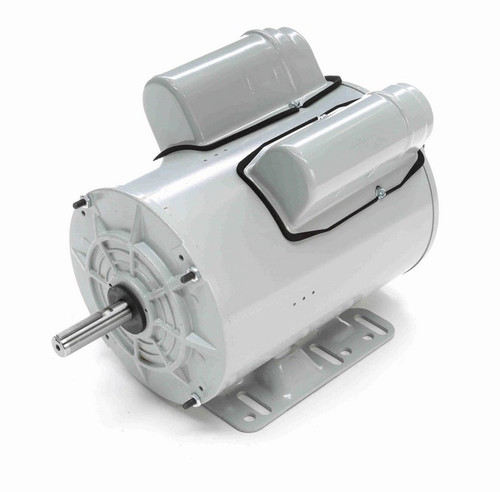

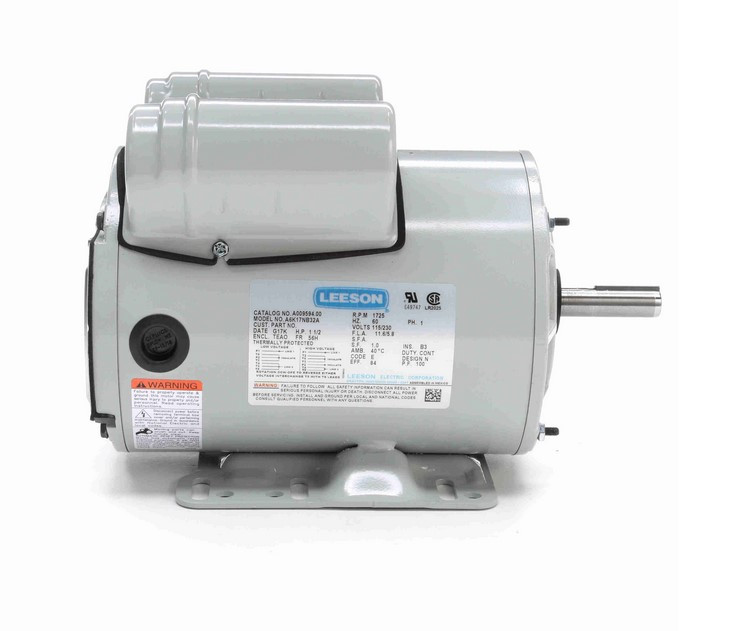

A009594.00 Leeson 1 1/2 hp 1800 RPM 115/230V 56H Frame TEAO 1-Phase Belt Drive Farm Motor

Leeson 1 1/2 hp 1800 RPM 115/230V 56H Frame TEAO 1-Phase Belt Drive Farm Motor (SKU: A009594)

This Leeson 1 1/2 horsepower motor is designed for farm duty applications, specifically to drive large fans via belt drive while positioned in the airstream. It serves as a reliable replacement motor with a totally enclosed air-over (TEAO) design for enhanced protection.

Key Specifications

• Horsepower: 1 1/2 hp
• RPM: 1800
• Voltage: 115/230 V
• Amperage: 11.6/5.8 A
• Enclosure: Totally Enclosed Air-Over (TEAO)
• Frame / Diameter: NEMA 56H
• Shaft Dimensions: 5/8" Diameter x 1 7/8" Length
• Rotation: Reversible
• Bearings: Ball Bearings

Product Features & Fitment

This capacitor start/run single-phase motor features a rigid base for stable mounting and includes overload protection with an automatic reset. The motor shaft is keyed for secure belt drive attachment. Wiring diagrams are provided on the motor nameplate to facilitate installation.

Warranty

1 Year Manufacturer Warranty
