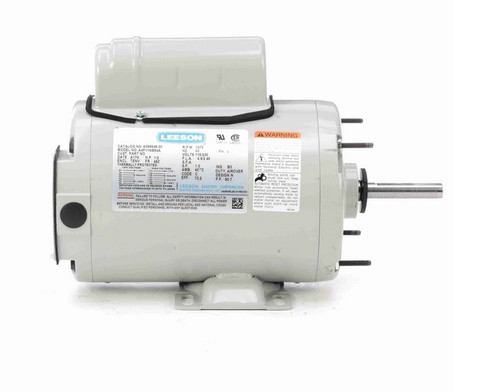

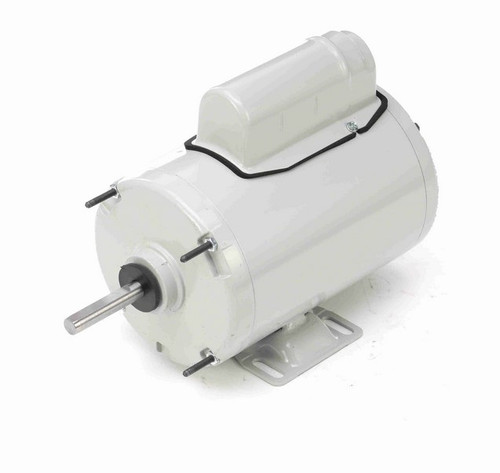

A099946.00 Leeson 1/2 hp 1200 RPM 115/230V 48Z Frame (Rigid Base) TEAO 1-Phase Farm Fan Motor

A099946.00 Leeson 1/2 hp 1200 RPM 115/230V 48Z Frame (Rigid Base) TEAO 1-Phase Farm Fan Motor

This Leeson 1/2 hp farm fan motor is designed for use in agricultural applications where a reliable, durable motor is required to drive fan blades. It replaces standard 1-phase motors and is ideal for farm duty with a totally enclosed air-over (TEAO) design.

Key Specifications

• Horsepower: 1/2 hp
• RPM: 1200
• Voltage: 115/230 V
• Amperage: 4.9/2.5 A
• Enclosure: Totally Enclosed Air-Over (TEAO)
• Frame / Diameter: NEMA 48Z Frame
• Shaft Dimensions: 1/2" Diameter x 2 1/4" Length
• Rotation: Reversible
• Bearings: Ball Bearings, Class B Insulation

Product Features & Fitment

This motor features a rigid base for secure mounting and includes overload protection with automatic reset. The wiring diagram is conveniently located on the motor nameplate to assist with installation. It is specifically engineered for attaching fan blades directly to the shaft, making it suitable for farm ventilation systems.

Warranty

1 Year Manufacturer Warranty
