A15P1C Nidec 15 hp 3600 RPM 256 U Frame (Rigid Base) 460V TEFC 3-Phase Automotive Duty Motor
A15P1C Nidec 15 hp 3600 RPM 256 U Frame (Rigid Base) 460V TEFC 3-Phase Automotive Duty Motor
A15P1C Nidec 15 hp 3600 RPM 256 U Frame (Rigid Base) 460V TEFC 3-Phase Automotive Duty Motor
A15P1C Nidec 15 hp 3600 RPM 256 U Frame (Rigid Base) 460V TEFC 3-Phase Automotive Duty Motor

Nidec

A15P1C Nidec 15 hp 3600 RPM 256 U Frame (Rigid Base) 460V TEFC 3-Phase Automotive Duty Motor

(No reviews) Write a Review
$2,877.30
$2,569.10
SKU A15P1C
Shipping Calculated at Checkout
Compliance Tab /content/product_tabs/p65warnings.html
ON SALE LIMITED TIME DISCOUNT
Voltage 460V
Horsepower 15 HP
RPM 3600
Phase Three Phase
Enclosure TEFC
Hertz 60 Hz
Amperage 17.3 Amps
Bearings Ball Bearings
Service Factor 1.15
Insulation Class Class F
Mounting Rigid Base
Adding to cart… The item has been added
Description
  • 15 hp 3600 RPM, 17.3 amps 460 Volts 60 Hz Three Phase Motor

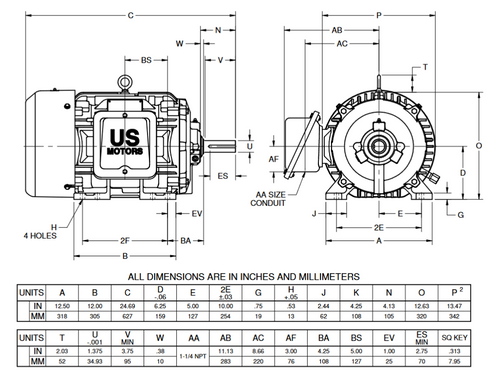

  • NEMA 256 Cast Iron U Frame Keyed Shaft 1 3/8" Diameter x 3 3/4"
  • Service Factor: 1.15, Overload protection = None
  • Rigid Base Mount, Ball Bearings, Class F Insulation, Reversible
  • 1 Year Manufacture Warranty

Designed for use in automotive and process industries requiring a U frame motor, Corrosion resistant, Division 1 hazardous location motor for class 1 group D.  Wiring diagram on motor name plate. TEFC = Totally Enclosed Fan Cooled. GB87

Specifications
Compliance Tab /content/product_tabs/p65warnings.html
ON SALE LIMITED TIME DISCOUNT
Voltage 460V
Horsepower 15 HP
RPM 3600
Phase Three Phase
Enclosure TEFC
Hertz 60 Hz
Amperage 17.3 Amps
Bearings Ball Bearings
Service Factor 1.15
Insulation Class Class F
Mounting Rigid Base
!
