A30P1CS Nidec 30 hp 3600 RPM 326 US Frame (Rigid Base) 460V TEFC 3-Phase Automotive Duty Motor
A30P1CS Nidec 30 hp 3600 RPM 326 US Frame (Rigid Base) 460V TEFC 3-Phase Automotive Duty Motor
A30P1CS Nidec 30 hp 3600 RPM 326 US Frame (Rigid Base) 460V TEFC 3-Phase Automotive Duty Motor
A30P1CS Nidec 30 hp 3600 RPM 326 US Frame (Rigid Base) 460V TEFC 3-Phase Automotive Duty Motor

Nidec

A30P1CS Nidec 30 hp 3600 RPM 326 US Frame (Rigid Base) 460V TEFC 3-Phase Automotive Duty Motor

(No reviews) Write a Review
$6,055.90
$5,407.19
SKU A30P1CS
Shipping Calculated at Checkout
Compliance Tab /content/product_tabs/p65warnings.html
ON SALE LIMITED TIME DISCOUNT
Voltage 460V
Horsepower 30 HP
RPM 3600
Phase Three Phase
Enclosure TEFC
Hertz 60 Hz
Amperage 34.0 Amps
Bearings Ball Bearings
Service Factor 1.15
Insulation Class Class F
Mounting Rigid Base
Adding to cart… The item has been added
Description
  • 30 hp 3600 RPM, 34.0 amps 460 Volts 60 Hz Three Phase Motor

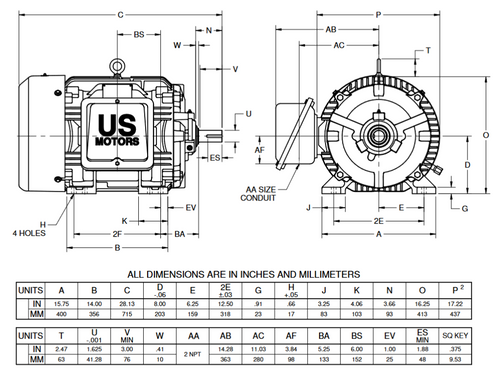

  • NEMA 326 Cast Iron US Frame Keyed Shaft 1 5/8" Diameter x 3 1/4"
  • Service Factor: 1.15, Overload protection = None
  • Rigid Base Mount, Ball Bearings, Class F Insulation, Reversible
  • 1 Year Manufacture Warranty

Designed for use in automotive and process industries requiring a U frame motor, Corrosion resistant, Division 1 hazardous location motor for class 1 group D.  Wiring diagram on motor name plate. TEFC = Totally Enclosed Fan Cooled. GC79

Specifications
Compliance Tab /content/product_tabs/p65warnings.html
ON SALE LIMITED TIME DISCOUNT
Voltage 460V
Horsepower 30 HP
RPM 3600
Phase Three Phase
Enclosure TEFC
Hertz 60 Hz
Amperage 34.0 Amps
Bearings Ball Bearings
Service Factor 1.15
Insulation Class Class F
Mounting Rigid Base
!
